Exemplo: Configuração do LDP de várias instâncias
A instância LDP primária está configurada no nível de [edit protocols] hierarquia.
Você pode configurar uma instância específica de LDP usando a ldp declaração no nível de [edit routing-instances routing-instance-name protocols] hierarquia. Isso cria uma instância de LDP para a instância de roteamento VRF específica. Você deve especificar todas as declarações de VRF necessárias e aplicar políticas de exportação e importação à sua instância de LDP para que a configuração se comprometa corretamente.
A maioria dos níveis de hierarquia de LDP disponíveis em uma instância primária também estão disponíveis para instâncias específicas de LDP. No entanto, a opção no-forwarding não funciona em uma instância baseada em VRF de LDP.

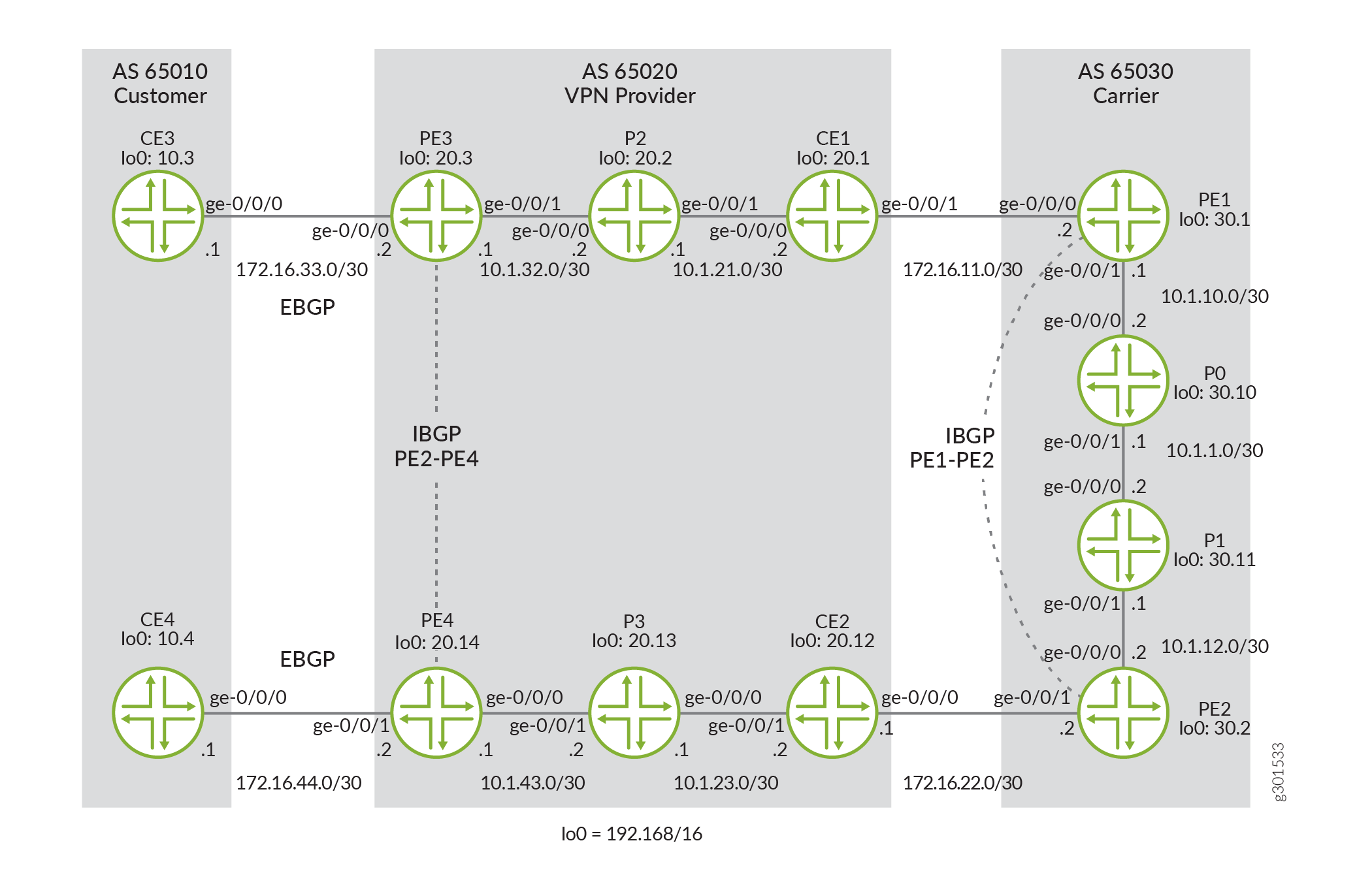

Figura 1: Diagrama de topologia de LDP de várias instâncias
Figura 1 mostra um exemplo de uma rede de operadoras. CE3 e CE4 são roteadores CE de clientes finais residentes no AS 65010. O provedor de VPN no AS 65020 tem três tipos de roteadores: PE3 e PE4 são roteadores PE que se conectam ao cliente final, CE1 e CE2 atuam como roteadores CE de operadora intermediária, e P2 e P3 são roteadores de trânsito interno. PE1 e PE2 no AS 65030 são roteadores PE que atendem o provedor de VPN intermediário, e P0 e P1 são roteadores de trânsito para a operadora de alto nível.
Para fazer essa configuração funcionar, você deve concluir três tarefas importantes:
-
Configure o BGP externo entre o CE do cliente VPN e o provedor de VPN PE.
-
Configure o BGP interno usando a família VPN entre ambos os pares de roteadores PE (uma conexão IBGP entre PE1 e PE2 e uma segunda conexão IBGP entre o Roteador PE3 e o Roteador PE4).
-
Estabeleça conexões de LDP e Interior Gateway Protocol (IGP) em todos os links restantes. Este exemplo usa o OSPF como IGP, mas você pode usar o IGP de sua escolha.
As informações que oferecem suporte a este exemplo de LDP de várias instâncias para operadoras são resumidas em Tabela 1.
|
Conexão |
Protocolos |
|---|---|
|
CE3 - PE3 |
Inet da família EBGP |
|
PE3 - P2 - CE1 |
OSPF e LDP |
|
CE1 - PE1 |
OSPF e LDP |
|
PE1 - P0 - P1 - PE2 |
OSPF e LDP |
|
PE1 - PE2 |
Inet-vpn da família IBGP |
|
PE2 - CE2 |
OSPF e LDP |
|
CE2 - P3 - PE4 |
OSPF e LDP |
|
PE4 - CE4 |
Inet da família EBGP |
|
PE3 - PE4 |
Inet-vpn da família IBGP |
Suas tarefas de configuração começam no Roteador CE3 e movem roteador por roteador através da primeira parte da rede de provedores de VPN, para o AS da operadora, através do segundo cluster de provedores de VPN do AS 65020, e terminam no segundo vpn customer Router CE4.
Como o Roteador CE3 é o primeiro roteador do cliente, configure o EBGP entre o Roteador CE3 e o roteador PE3 do provedor de VPN conectado. Você também deve anunciar seu endereço de loopback no BGP com uma política de roteamento para permitir a acessibilidade de IP com o Roteador CE4.
Roteador CE3
user@CE3# set interfaces ge-0/0/0 description to-PE3 set interfaces ge-0/0/0 unit 0 family inet address 172.16.33.1/30 set interfaces lo0 unit 0 family inet address 192.168.10.3/32 set policy-options policy-statement loopback term 1 from route-filter 192.168.10.3/32 exact set policy-options policy-statement loopback term 1 then accept set policy-options policy-statement loopback term 3 then reject set protocols bgp group to-PE3 export loopback set protocols bgp group to-PE3 peer-as 65020 set protocols bgp group to-PE3 neighbor 172.16.33.2 set routing-options router-id 192.168.10.3 set routing-options autonomous-system 65010
No Roteador PE3, as tarefas de configuração estão mais envolvidas. Você precisa concluir a conexão EBGP com o Roteador CE3 em uma instância VRF, habilitar MPLS e LDP na interface apontando para o provedor de VPN Router CE1 e configurar uma instância primária do IBGP para chegar ao Roteador PE4 na borda distante do AS 65020.
Por fim, configure uma política VRF de saída que coloca todo o tráfego BGP e interfaces conectadas diretamente em uma comunidade BGP e uma política VRF de entrada que aceita tráfego comunitário BGP semelhante do Roteador PE4.
Roteador PE3
user@PE3# set interfaces ge-0/0/0 description to-CE3 set interfaces ge-0/0/0 unit 0 family inet address 172.16.33.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-P2 set interfaces ge-0/0/1 unit 0 family inet address 10.1.32.1/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.20.3/32 set policy-options policy-statement vpn-customer-export term 1 from protocol bgp set policy-options policy-statement vpn-customer-export term 1 from protocol direct set policy-options policy-statement vpn-customer-export term 1 then community add vpn-customer-comm set policy-options policy-statement vpn-customer-export term 1 then accept set policy-options policy-statement vpn-customer-export term 2 then reject set policy-options policy-statement vpn-customer-import term 1 from protocol bgp set policy-options policy-statement vpn-customer-import term 1 from community vpn-customer-comm set policy-options policy-statement vpn-customer-import term 1 then accept set policy-options policy-statement vpn-customer-import term 2 then reject set policy-options community vpn-customer-comm members target:65020:1 set routing-instances vpn-customer instance-type vrf set routing-instances vpn-customer protocols bgp group customer peer-as 65010 set routing-instances vpn-customer protocols bgp group customer as-override set routing-instances vpn-customer protocols bgp group customer neighbor 172.16.33.1 set routing-instances vpn-customer interface ge-0/0/0.0 set routing-instances vpn-customer route-distinguisher 192.168.20.3:1 set routing-instances vpn-customer vrf-import vpn-customer-import set routing-instances vpn-customer vrf-export vpn-customer-export set protocols bgp group to-PE4 type internal set protocols bgp group to-PE4 local-address 192.168.20.3 set protocols bgp group to-PE4 neighbor 192.168.20.14 family inet-vpn unicast set protocols ldp interface ge-0/0/1.0 set protocols mpls interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.20.3 set routing-options autonomous-system 65020
No roteador P2, habilite o LDP e o IGP usados para rótulos de transporte (neste caso, OSPF). Você repetirá essas tarefas em todos os roteadores de núcleo de trânsito, tanto na rede do provedor de VPN quanto na rede principal da operadora.
Roteador P2
user@P2# set interfaces ge-0/0/0 description to-PE3 set interfaces ge-0/0/0 unit 0 family inet address 10.1.32.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-CE1 set interfaces ge-0/0/1 unit 0 family inet address 10.1.21.1/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.20.2/32 set protocols ldp interface ge-0/0/0.0 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.20.2 set routing-options autonomous-system 65020
Para o Roteador CE1, configure LDP e OSPF da mesma maneira que você configurou o Roteador P2.
Roteador CE1
user@CE1# set interfaces ge-0/0/0 description to-P2 set interfaces ge-0/0/0 unit 0 family inet address 10.1.21.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-PE1 set interfaces ge-0/0/1 unit 0 family inet address 172.16.11.1/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.20.1/32 set protocols ldp interface ge-0/0/0.0 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.20.1 set routing-options autonomous-system 65020
No roteador de operadora principal PE1, configure uma instância primária para OSPF, LDP, MPLS e IBGP (com a opção family inet-vpn ) para conectar o roteador ao roteador vizinho PE2. Em seguida, implemente o LDP de várias instâncias estabelecendo uma instância secundária. Habilite o LDP e o OSPF neste caso para que o Roteador PE1 se comunique com o Roteador CE1. O MPLS não é exigido na instância secundária.
Finalmente, configure uma política VRF de saída que coloca todo o tráfego LDP vindo do Roteador CE1 em uma comunidade BGP, uma política de exportação que envia esse tráfego comunitário para o Roteador PE2 e uma política VRF de entrada que aceita tráfego comunitário BGP semelhante do Roteador PE2. Essa etapa coloca o tráfego LDP do provedor de VPN na sessão BGP da operadora.
Roteador PE1
user@PE1# set interfaces ge-0/0/0 description to-CE1 set interfaces ge-0/0/0 unit 0 family inet address 172.16.11.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-P0 set interfaces ge-0/0/1 unit 0 family inet address 10.1.10.1/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.30.1/32 set policy-options policy-statement bgp-routes-export term 1 from protocol bgp set policy-options policy-statement bgp-routes-export term 1 from community vpn-provider-comm set policy-options policy-statement bgp-routes-export term 1 then accept set policy-options policy-statement bgp-routes-export term 2 then reject set policy-options policy-statement vpn-provider-export term 1 from protocol ldp set policy-options policy-statement vpn-provider-export term 1 from protocol ospf set policy-options policy-statement vpn-provider-export term 1 then community add vpn-provider-comm set policy-options policy-statement vpn-provider-export term 1 then accept set policy-options policy-statement vpn-provider-export term 2 then reject set policy-options policy-statement vpn-provider-import term 1 from protocol bgp set policy-options policy-statement vpn-provider-import term 1 from community vpn-provider-comm set policy-options policy-statement vpn-provider-import term 1 then accept set policy-options policy-statement vpn-provider-import term 2 then reject set policy-options community vpn-provider-comm members target:65030:1 set routing-instances vpn-provider instance-type vrf set routing-instances vpn-provider protocols ldp egress-policy bgp-routes-export set routing-instances vpn-provider protocols ldp interface ge-0/0/0.0 set routing-instances vpn-provider protocols mpls traffic-engineering bgp-igp set routing-instances vpn-provider protocols mpls interface ge-0/0/0.0 set routing-instances vpn-provider protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set routing-instances vpn-provider protocols ospf export bgp-routes-export set routing-instances vpn-provider interface ge-0/0/0.0 set routing-instances vpn-provider route-distinguisher 192.168.30.1:1 set routing-instances vpn-provider vrf-import vpn-provider-import set routing-instances vpn-provider vrf-export vpn-provider-export set protocols bgp group pe type internal set protocols bgp group pe local-address 192.168.30.1 set protocols bgp group pe family inet-vpn unicast set protocols bgp group pe neighbor 192.168.30.2 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set routing-options router-id 192.168.30.1 set routing-options autonomous-system 65030
No roteador P0, habilite o LDP e o OSPF da mesma maneira que você configurou esses protocolos no Roteador P2. Você repetirá essas tarefas no roteador P1 e roteador P3.
Roteador P0
user@P0# set interfaces ge-0/0/0 description to-PE1 set interfaces ge-0/0/0 unit 0 family inet address 10.1.10.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-P1 set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.1/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.30.10/32 set protocols ldp interface ge-0/0/0.0 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.30.10 set routing-options autonomous-system 65030
No roteador P1, habilite o LDP e o IGP usados para rótulos de transporte (OSPF neste caso).
Roteador P1
user@P1# set interfaces ge-0/0/0 description to-P0 set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-PE2 set interfaces ge-0/0/1 unit 0 family inet address 10.1.12.1/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.30.11/32 set protocols ldp interface ge-0/0/0.0 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.30.11 set routing-options autonomous-system 65030
O roteador de operadora de núcleo PE2 é uma imagem espelhada do Roteador PE1. Primeiro, configure uma instância primária para OSPF, LDP, MPLS e IBGP (com a opção) para conectar o family inet-vpn Roteador PE2 ao roteador vizinho PE1. Em seguida, implemente o LDP de várias instâncias estabelecendo uma instância secundária. Habilite o LDP e o OSPF neste caso para que o Roteador PE2 se comunique com o Roteador CE2. O MPLS não é exigido na instância secundária.
Finalmente, configure uma política VRF de saída que coloca todo o tráfego LDP vindo do Roteador CE2 em uma comunidade BGP, uma política de exportação que envia esse tráfego comunitário para o Roteador PE1 e uma política VRF de entrada que aceita tráfego comunitário BGP semelhante do Roteador PE1. Essa etapa coloca o tráfego LDP do provedor de VPN na sessão BGP da operadora.
Roteador PE2
user@PE2# set interfaces ge-0/0/0 description to-P1 set interfaces ge-0/0/0 unit 0 family inet address 10.1.12.2/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-CE2 set interfaces ge-0/0/1 unit 0 family inet address 172.16.22.2/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.30.2/32 set policy-options policy-statement bgp-routes-export term 1 from protocol bgp set policy-options policy-statement bgp-routes-export term 1 from community vpn-provider-comm set policy-options policy-statement bgp-routes-export term 1 then accept set policy-options policy-statement bgp-routes-export term 2 then reject set policy-options policy-statement vpn-provider-export term 1 from protocol ldp set policy-options policy-statement vpn-provider-export term 1 from protocol ospf set policy-options policy-statement vpn-provider-export term 1 then community add vpn-provider-comm set policy-options policy-statement vpn-provider-export term 1 then accept set policy-options policy-statement vpn-provider-export term 2 then reject set policy-options policy-statement vpn-provider-import term 1 from protocol bgp set policy-options policy-statement vpn-provider-import term 1 from community vpn-provider-comm set policy-options policy-statement vpn-provider-import term 1 then accept set policy-options policy-statement vpn-provider-import term 2 then reject set policy-options community vpn-provider-comm members target:65030:1 set routing-instances vpn-provider instance-type vrf set routing-instances vpn-provider protocols ldp egress-policy bgp-routes-export set routing-instances vpn-provider protocols ldp interface ge-0/0/1.0 set routing-instances vpn-provider protocols mpls traffic-engineering bgp-igp set routing-instances vpn-provider protocols mpls interface ge-0/0/1.0 set routing-instances vpn-provider protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set routing-instances vpn-provider protocols ospf export bgp-routes-export set routing-instances vpn-provider interface ge-0/0/1.0 set routing-instances vpn-provider route-distinguisher 192.168.30.2:1 set routing-instances vpn-provider vrf-import vpn-provider-import set routing-instances vpn-provider vrf-export vpn-provider-export set protocols bgp group pe type internal set protocols bgp group pe local-address 192.168.30.2 set protocols bgp group pe family inet-vpn unicast set protocols bgp group pe neighbor 192.168.30.1 set protocols ldp interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface lo0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set routing-options router-id 192.168.30.2 set routing-options autonomous-system 65030
Para o Roteador CE2, configure LDP e OSPF como você fez no Roteador CE1 e nos roteadores P de trânsito.
Roteador CE2
user@CE2# set interfaces ge-0/0/0 description to-PE2 set interfaces ge-0/0/0 unit 0 family inet address 172.16.22.1/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-P3 set interfaces ge-0/0/1 unit 0 family inet address 10.1.23.2/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.20.12/32 set protocols ldp interface ge-0/0/0.0 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.20.12 set routing-options autonomous-system 65020
Como o Roteador P3 é outro roteador de provedor de núcleo, habilite LDP e OSPF em todas as interfaces de trânsito.
Roteador P3
user@P3# set interfaces ge-0/0/0 description to-CE2 set interfaces ge-0/0/0 unit 0 family inet address 10.1.23.1/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-PE4 set interfaces ge-0/0/1 unit 0 family inet address 10.1.43.2/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.20.13/32 set protocols ldp interface ge-0/0/0.0 set protocols ldp interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.20.13 set routing-options autonomous-system 65020
No Roteador PE4, preencha a conexão IBGP iniciada no Roteador PE3 para conectar os roteadores de borda no AS 65020. Além disso, habilite o LDP e o MPLS na interface que aponta para o roteador CE2 do provedor de VPN e estabeleça uma conexão EBGP com o Roteador CE4 através do uso de uma instância VRF.
Finalmente, configure uma política VRF de saída que coloca todo o tráfego BGP e interfaces conectadas diretamente em uma comunidade BGP e uma política VRF de entrada que aceita tráfego comunitário BGP semelhante do Roteador PE3.
Roteador PE4
user@PE4# set interfaces ge-0/0/0 description to-P3 set interfaces ge-0/0/0 unit 0 family inet address 10.1.43.1/30 set interfaces ge-0/0/0 unit 0 family mpls set interfaces ge-0/0/1 description to-CE4 set interfaces ge-0/0/1 unit 0 family inet address 172.16.44.2/30 set interfaces ge-0/0/1 unit 0 family mpls set interfaces lo0 unit 0 family inet address 192.168.20.14/32 set policy-options policy-statement vpn-customer-export term 1 from protocol bgp set policy-options policy-statement vpn-customer-export term 1 from protocol direct set policy-options policy-statement vpn-customer-export term 1 then community add vpn-customer-comm set policy-options policy-statement vpn-customer-export term 1 then accept set policy-options policy-statement vpn-customer-export term 2 then reject set policy-options policy-statement vpn-customer-import term 1 from protocol bgp set policy-options policy-statement vpn-customer-import term 1 from community vpn-customer-comm set policy-options policy-statement vpn-customer-import term 1 then accept set policy-options policy-statement vpn-customer-import term 2 then reject set policy-options community vpn-customer-comm members target:65020:1 set routing-instances vpn-customer instance-type vrf set routing-instances vpn-customer protocols bgp group customer peer-as 65010 set routing-instances vpn-customer protocols bgp group customer as-override set routing-instances vpn-customer protocols bgp group customer neighbor 172.16.44.1 set routing-instances vpn-customer interface ge-0/0/1.0 set routing-instances vpn-customer route-distinguisher 192.168.20.14:1 set routing-instances vpn-customer vrf-import vpn-customer-import set routing-instances vpn-customer vrf-export vpn-customer-export set protocols bgp group int type internal set protocols bgp group int local-address 192.168.20.14 set protocols bgp group int neighbor 192.168.20.3 family inet-vpn unicast set protocols ldp interface ge-0/0/0.0 set protocols mpls interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface ge-0/0/0.0 set protocols ospf area 0.0.0.0 interface lo0.0 set routing-options router-id 192.168.20.14 set routing-options autonomous-system 65020
O roteador CE4 é o roteador de cliente VPN de destino. Configure o EBGP entre o Roteador CE4 e o roteador PE4 do provedor de VPN conectado para concluir a configuração. Lembre-se de anunciar o endereço de loopback no BGP usando uma política de roteamento para permitir a acessibilidade de IP com o Roteador CE3.
Roteador CE4
user@CE4# set interfaces ge-0/0/0 description to-PE4 set interfaces ge-0/0/0 unit 0 family inet address 172.16.44.1/30 set interfaces lo0 unit 0 family inet address 192.168.10.4/32 set policy-options policy-statement loopback term 1 from route-filter 192.168.10.4/32 exact set policy-options policy-statement loopback term 1 then accept set policy-options policy-statement loopback term 3 then reject set protocols bgp group provider export loopback set protocols bgp group provider peer-as 65020 set protocols bgp group provider neighbor 172.16.44.2 set routing-options router-id 192.168.10.4 set routing-options autonomous-system 65010
Verificando seu trabalho
Para verificar a operação adequada da configuração LDP de várias instâncias, use os seguintes comandos:
-
show ldp database -
show ldp interface -
show ldp neighbor -
show ldp path -
show ldp route -
show ldp session -
show ldp statistics
A saída de display para esses comandos é a mesma das versões anteriores do Junos OS, exceto por uma diferença. Um nome de instância agora pode ser usado como argumento.
Se você incluir um nome de instância com esses comandos, você exibirá informações para a instância LDP especificada. Por exemplo, o comando show ldp neighbor instance crockett mostra todos os vizinhos LDP para uma instância VRF chamada crockett. Por outro lado, show ldp neighbor sem um nome de instância exibe os vizinhos LDP associados à instância primária.
As seções a seguir mostram a saída desses comandos usados com o exemplo de configuração:
- Status do roteador CE3
- Status do roteador PE3
- Status do roteador CE1
- Status do roteador PE1
- Status do Roteador PE2
- Status do ROTEADOR CE2
- Status do roteador PE4
- Status do roteador CE4
Status do roteador CE3
user@CE3> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 1 Peers: 1 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
2 2 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
172.16.33.2 65020 19653 19724 0 0 6d 3:53:37 Establ
inet.0: 2/2/2/0
user@CE3> show route protocol bgp
inet.0: 11 destinations, 11 routes (11 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
172.16.44.0/30 *[BGP/170] 6d 00:53:43, localpref 100
AS path: 65020 I, validation-state: unverified
> to 172.16.33.2 via ge-0/0/0.0
192.168.10.4/32 *[BGP/170] 6d 00:53:42, localpref 100
AS path: 65020 65020 I, validation-state: unverified
> to 172.16.33.2 via ge-0/0/0.0
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
user@CE3> ping 192.168.10.4 source 192.168.10.3 count 2
PING 192.168.10.4 (192.168.10.4): 56 data bytes
64 bytes from 192.168.10.4: icmp_seq=0 ttl=54 time=24.744 ms
64 bytes from 192.168.10.4: icmp_seq=1 ttl=54 time=16.336 ms
--- 192.168.10.4 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max/stddev = 16.336/20.540/24.744/4.204 ms
Status do roteador PE3
user@PE3> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
bgp.l3vpn.0
2 2 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
172.16.33.1 65010 19783 19708 0 0 6d 4:19:07 Establ
vpn-customer.inet.0: 1/1/1/0
192.168.20.14 65020 19299 19297 0 1 6d 1:17:05 Establ
bgp.l3vpn.0: 2/2/2/0
vpn-customer.inet.0: 2/2/2/0
user@PE3> show route protocol ldp
inet.0: 20 destinations, 20 routes (20 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
224.0.0.2/32 *[LDP/9] 6d 04:55:21, metric 1
MultiRecv
inet.3: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.1.23.0/30 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Push 299968
10.1.43.0/30 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Push 300000
192.168.20.1/32 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Push 299952
192.168.20.2/32 *[LDP/9] 6d 04:22:00, metric 1
> to 10.1.32.2 via ge-0/0/1.0
192.168.20.12/32 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Push 299984
192.168.20.13/32 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Push 300016
192.168.20.14/32 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Push 300032
vpn-customer.inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
mpls.0: 13 destinations, 13 routes (13 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
299856 *[LDP/9] 6d 04:22:00, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Pop
299856(S=0) *[LDP/9] 6d 04:22:00, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Pop
299984 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Swap 299952
300000 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Swap 299968
300016 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Swap 299984
300032 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Swap 300000
300048 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Swap 300016
300064 *[LDP/9] 6d 01:18:46, metric 1
> to 10.1.32.2 via ge-0/0/1.0, Swap 300032
bgp.l3vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
vpn-customer.inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
user@PE3> show route protocol bgp
inet.0: 20 destinations, 20 routes (20 active, 0 holddown, 0 hidden)
inet.3: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
vpn-customer.inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
172.16.44.0/30 *[BGP/170] 6d 01:19:31, localpref 100, from 192.168.20.14
AS path: I, validation-state: unverified
> to 10.1.32.2 via ge-0/0/1.0, Push 299968, Push 300032(top)
192.168.10.3/32 *[BGP/170] 6d 04:21:33, localpref 100
AS path: 65010 I, validation-state: unverified
> to 172.16.33.1 via ge-0/0/0.0
192.168.10.4/32 *[BGP/170] 6d 01:19:30, localpref 100, from 192.168.20.14
AS path: 65010 I, validation-state: unverified
> to 10.1.32.2 via ge-0/0/1.0, Push 299968, Push 300032(top)
mpls.0: 13 destinations, 13 routes (13 active, 0 holddown, 0 hidden)
bgp.l3vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
192.168.20.14:1:172.16.44.0/30
*[BGP/170] 6d 01:19:31, localpref 100, from 192.168.20.14
AS path: I, validation-state: unverified
> to 10.1.32.2 via ge-0/0/1.0, Push 299968, Push 300032(top)
192.168.20.14:1:192.168.10.4/32
*[BGP/170] 6d 01:19:30, localpref 100, from 192.168.20.14
AS path: 65010 I, validation-state: unverified
> to 10.1.32.2 via ge-0/0/1.0, Push 299968, Push 300032(top)
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
vpn-customer.inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
Status do roteador CE1
user@CE1> show ldp neighbor
Address Interface Label space ID Hold time
172.16.11.2 ge-0/0/1.0 172.16.11.2:0 12
10.1.21.1 ge-0/0/0.0 192.168.20.2:0 12
user@CE1> show route
inet.0: 15 destinations, 15 routes (15 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.1.21.0/30 *[Direct/0] 6d 01:32:24
> via ge-0/0/0.0
10.1.21.2/32 *[Local/0] 6d 01:32:24
Local via ge-0/0/0.0
10.1.23.0/30 *[OSPF/10] 6d 03:34:28, metric 3
> to 172.16.11.2 via ge-0/0/1.0
10.1.32.0/30 *[OSPF/10] 6d 01:31:41, metric 2
> to 10.1.21.1 via ge-0/0/0.0
10.1.43.0/30 *[OSPF/10] 6d 03:28:49, metric 4
> to 172.16.11.2 via ge-0/0/1.0
172.16.11.0/30 *[Direct/0] 6d 04:57:56
> via ge-0/0/1.0
172.16.11.1/32 *[Local/0] 6d 04:57:56
Local via ge-0/0/1.0
192.168.20.1/32 *[Direct/0] 6d 04:40:45
> via lo0.0
192.168.20.2/32 *[OSPF/10] 6d 01:31:41, metric 1
> to 10.1.21.1 via ge-0/0/0.0
192.168.20.3/32 *[OSPF/10] 6d 01:31:41, metric 2
> to 10.1.21.1 via ge-0/0/0.0
192.168.20.12/32 *[OSPF/150] 6d 03:34:27, metric 1, tag 3489725958
> to 172.16.11.2 via ge-0/0/1.0
192.168.20.13/32 *[OSPF/150] 6d 03:28:46, metric 1, tag 3489725958
> to 172.16.11.2 via ge-0/0/1.0
192.168.20.14/32 *[OSPF/150] 6d 02:51:40, metric 1, tag 3489725958
> to 172.16.11.2 via ge-0/0/1.0
224.0.0.2/32 *[LDP/9] 6d 04:57:56, metric 1
MultiRecv
224.0.0.5/32 *[OSPF/10] 6d 04:57:56, metric 1
MultiRecv
inet.3: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.1.23.0/30 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Push 300032
10.1.43.0/30 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Push 300064
192.168.20.2/32 *[LDP/9] 6d 01:31:39, metric 1
> to 10.1.21.1 via ge-0/0/0.0
192.168.20.3/32 *[LDP/9] 6d 01:31:39, metric 1
> to 10.1.21.1 via ge-0/0/0.0, Push 299856
192.168.20.12/32 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Push 300048
192.168.20.13/32 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Push 300080
192.168.20.14/32 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Push 300096
mpls.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
299888 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Swap 300032
299904 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Swap 300048
299920 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Swap 300064
299936 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Swap 300080
299952 *[LDP/9] 6d 01:32:49, metric 1
> to 172.16.11.2 via ge-0/0/1.0, Swap 300096
299968 *[LDP/9] 6d 01:31:39, metric 1
> to 10.1.21.1 via ge-0/0/0.0, Pop
299968(S=0) *[LDP/9] 6d 01:31:39, metric 1
> to 10.1.21.1 via ge-0/0/0.0, Pop
299984 *[LDP/9] 6d 01:31:39, metric 1
> to 10.1.21.1 via ge-0/0/0.0, Swap 299856
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
ff02::2/128 *[INET6/0] 1w0d 02:45:00
MultiRecv
Status do roteador PE1
user@PE1> show ldp neighbor instance vpn-provider
Address Interface Label space ID Hold time
172.16.11.1 ge-0/0/0.0 192.168.20.1:0 14
user@PE1> show ldp database instance vpn-provider
Input label database, 172.16.11.2:0--192.168.20.1:0
Labels received: 8
Label Prefix
299888 10.1.23.0/30
299920 10.1.43.0/30
3 192.168.20.1/32
299968 192.168.20.2/32
299984 192.168.20.3/32
299904 192.168.20.12/32
299936 192.168.20.13/32
299952 192.168.20.14/32
Output label database, 172.16.11.2:0--192.168.20.1:0
Labels advertised: 8
Label Prefix
300032 10.1.23.0/30
300064 10.1.43.0/30
299824 192.168.20.1/32
300112 192.168.20.2/32
300128 192.168.20.3/32
300048 192.168.20.12/32
300080 192.168.20.13/32
300096 192.168.20.14/32
user@PE1> show ldp interface instance vpn-provider
Interface Address Label space ID Nbr Next
count hello
ge-0/0/0.0 172.16.11.2 172.16.11.2:0 1 2
user@PE1> show ldp path instance vpn-provider
Output Session (label) Input Session (label)
192.168.20.1:0(299824)( ) 192.168.20.1:0(3)( )
Attached route: 192.168.20.1/32, Ingress route
192.168.20.1:0(300032) ( )
Attached route: 10.1.23.0/30
192.168.20.1:0(300048) ( )
Attached route: 192.168.20.12/32
192.168.20.1:0(300064) ( )
Attached route: 10.1.43.0/30
192.168.20.1:0(300080) ( )
Attached route: 192.168.20.13/32
192.168.20.1:0(300096) ( )
Attached route: 192.168.20.14/32
192.168.20.1:0(300112) 192.168.20.1:0(299968)
Attached route: 192.168.20.2/32, Ingress route
192.168.20.1:0(300128) 192.168.20.1:0(299984)
Attached route: 192.168.20.3/32, Ingress route
user@PE1> show ldp route instance vpn-provider
Destination Next-hop intf/lsp/table Next-hop address
10.1.21.0/30 ge-0/0/0.0 172.16.11.1
10.1.23.0/30 192.168.30.2
10.1.32.0/30 ge-0/0/0.0 172.16.11.1
10.1.43.0/30 192.168.30.2
172.16.11.0/30 ge-0/0/0.0
172.16.11.2/32
192.168.20.1/32 ge-0/0/0.0 172.16.11.1
192.168.20.2/32 ge-0/0/0.0 172.16.11.1
192.168.20.3/32 ge-0/0/0.0 172.16.11.1
192.168.20.12/32 192.168.30.2
192.168.20.13/32 192.168.30.2
192.168.20.14/32 192.168.30.2
224.0.0.5/32
user@PE1> show ldp session instance vpn-provider
Address State Connection Hold time Adv. Mode
192.168.20.1 Operational Open 21 DU
user@PE1> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 1 Peers: 1 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
bgp.l3vpn.0
5 5 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
192.168.30.2 65030 19795 19797 0 0 6d 4:21:31 Establ
bgp.l3vpn.0: 5/5/5/0
vpn-provider.inet.0: 5/5/5/0
Status do Roteador PE2
user@PE2> show ldp neighbor instance vpn-provider
Address Interface Label space ID Hold time
172.16.22.1 ge-0/0/1.0 192.168.20.12:0 12
user@PE2> show ldp database instance vpn-provider
Input label database, 172.16.22.2:0--192.168.20.12:0
Labels received: 8
Label Prefix
299888 10.1.21.0/30
299904 10.1.32.0/30
299808 192.168.20.1/32
299920 192.168.20.2/32
299936 192.168.20.3/32
3 192.168.20.12/32
299856 192.168.20.13/32
299872 192.168.20.14/32
Output label database, 172.16.22.2:0--192.168.20.12:0
Labels advertised: 8
Label Prefix
300000 10.1.21.0/30
300032 10.1.32.0/30
299888 192.168.20.1/32
300016 192.168.20.2/32
300048 192.168.20.3/32
299920 192.168.20.12/32
299952 192.168.20.13/32
299984 192.168.20.14/32
user@PE2> show ldp interface instance vpn-provider
Interface Address Label space ID Nbr Next
count hello
ge-0/0/1.0 172.16.22.2 172.16.22.2:0 1 4
user@PE2> show ldp path instance vpn-provider
Output Session (label) Input Session (label)
192.168.20.12:0(299888)( )( )
( )
Attached route: 192.168.20.1/32
192.168.20.12:0(299920) 192.168.20.12:0(3)
Attached route: 192.168.20.12/32, Ingress route
192.168.20.12:0(299952) 192.168.20.12:0(299856)
Attached route: 192.168.20.13/32, Ingress route
192.168.20.12:0(299984) 192.168.20.12:0(299872)
Attached route: 192.168.20.14/32, Ingress route
192.168.20.12:0(300000) ( )
Attached route: 10.1.21.0/30
192.168.20.12:0(300016) ( )
Attached route: 192.168.20.2/32
192.168.20.12:0(300032) ( )
Attached route: 10.1.32.0/30
192.168.20.12:0(300048) ( )
Attached route: 192.168.20.3/32
user@PE2> show ldp route instance vpn-provider
Destination Next-hop intf/lsp/table Next-hop address
10.1.21.0/30 192.168.30.1
10.1.23.0/30 ge-0/0/1.0 172.16.22.1
10.1.32.0/30 192.168.30.1
10.1.43.0/30 ge-0/0/1.0 172.16.22.1
172.16.22.0/30 ge-0/0/1.0
172.16.22.2/32
192.168.20.1/32 192.168.30.1
192.168.20.2/32 192.168.30.1
192.168.20.3/32 192.168.30.1
192.168.20.12/32 ge-0/0/1.0 172.16.22.1
192.168.20.13/32 ge-0/0/1.0 172.16.22.1
192.168.20.14/32 ge-0/0/1.0 172.16.22.1
224.0.0.5/32
user@PE2> show ldp session instance vpn-provider
Address State Connection Hold time Adv. Mode
192.168.20.12 Operational Open 21 DU
user@PE2> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 1 Peers: 1 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
bgp.l3vpn.0
5 5 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
192.168.30.1 65030 35560 35557 0 0 1w4d 2:35:55 Establ
bgp.l3vpn.0: 5/5/5/0
vpn-provider.inet.0: 5/5/5/0
Status do ROTEADOR CE2
user@CE2> show ldp neighbor
Address Interface Label space ID Hold time
172.16.22.2 ge-0/0/0.0 172.16.22.2:0 12
10.1.23.1 ge-0/0/1.0 192.168.20.13:0 11
user@CE2> show route
inet.0: 16 destinations, 16 routes (16 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.1.21.0/30 *[OSPF/10] 1w4d 00:42:23, metric 3
> to 172.16.22.2 via ge-0/0/0.0
10.1.23.0/30 *[Direct/0] 1w4d 02:44:36
> via ge-0/0/1.0
10.1.23.2/32 *[Local/0] 1w4d 02:44:36
Local via ge-0/0/1.0
10.1.32.0/30 *[OSPF/10] 1w4d 00:41:40, metric 4
> to 172.16.22.2 via ge-0/0/0.0
10.1.43.0/30 *[OSPF/10] 1w4d 02:38:50, metric 2
> to 10.1.23.1 via ge-0/0/1.0
172.16.22.0/30 *[Direct/0] 1w4d 02:44:36
> via ge-0/0/0.0
172.16.22.1/32 *[Local/0] 1w4d 02:44:36
Local via ge-0/0/0.0
192.168.0.0/16 *[Static/5] 1w5d 01:55:12
> to 10.93.31.254 via fxp0.0
192.168.20.1/32 *[OSPF/150] 1w4d 02:44:26, metric 1, tag 3489725958
> to 172.16.22.2 via ge-0/0/0.0
192.168.20.2/32 *[OSPF/150] 1w4d 00:41:37, metric 1, tag 3489725958
> to 172.16.22.2 via ge-0/0/0.0
192.168.20.3/32 *[OSPF/150] 1w4d 00:41:37, metric 1, tag 3489725958
> to 172.16.22.2 via ge-0/0/0.0
192.168.20.12/32 *[Direct/0] 1w4d 02:44:36
> via lo0.0
192.168.20.13/32 *[OSPF/10] 1w4d 02:38:50, metric 1
> to 10.1.23.1 via ge-0/0/1.0
192.168.20.14/32 *[OSPF/10] 1w4d 02:01:44, metric 2
> to 10.1.23.1 via ge-0/0/1.0
224.0.0.2/32 *[LDP/9] 1w4d 02:44:36, metric 1
MultiRecv
224.0.0.5/32 *[OSPF/10] 1w4d 02:44:36, metric 1
MultiRecv
inet.3: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.1.21.0/30 *[LDP/9] 1w4d 00:42:23, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Push 300000
10.1.32.0/30 *[LDP/9] 1w4d 00:41:40, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Push 300032
192.168.20.1/32 *[LDP/9] 1w4d 02:44:26, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Push 299888
192.168.20.2/32 *[LDP/9] 1w4d 00:41:40, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Push 300016
192.168.20.3/32 *[LDP/9] 1w4d 00:41:40, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Push 300048
192.168.20.13/32 *[LDP/9] 1w4d 02:38:47, metric 1
> to 10.1.23.1 via ge-0/0/1.0
192.168.20.14/32 *[LDP/9] 1w4d 02:01:41, metric 1
> to 10.1.23.1 via ge-0/0/1.0, Push 299872
mpls.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
299808 *[LDP/9] 1w4d 02:44:26, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Swap 299888
299856 *[LDP/9] 1w4d 02:38:47, metric 1
> to 10.1.23.1 via ge-0/0/1.0, Pop
299856(S=0) *[LDP/9] 1w4d 02:38:47, metric 1
> to 10.1.23.1 via ge-0/0/1.0, Pop
299872 *[LDP/9] 1w4d 02:01:41, metric 1
> to 10.1.23.1 via ge-0/0/1.0, Swap 299872
299888 *[LDP/9] 1w4d 00:42:23, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Swap 300000
299904 *[LDP/9] 1w4d 00:41:40, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Swap 300032
299920 *[LDP/9] 1w4d 00:41:40, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Swap 300016
299936 *[LDP/9] 1w4d 00:41:40, metric 1
> to 172.16.22.2 via ge-0/0/0.0, Swap 300048
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
ff02::2/128 *[INET6/0] 1w5d 01:55:12
MultiRecv
Status do roteador PE4
user@PE4> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 2 Peers: 2 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
bgp.l3vpn.0
2 2 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
172.16.44.1 65010 35462 35336 0 0 1w4d 1:56:16 Establ
vpn-customer.inet.0: 1/1/1/0
192.168.20.3 65020 35168 35168 0 1 1w4d 0:42:52 Establ
bgp.l3vpn.0: 2/2/2/0
vpn-customer.inet.0: 2/2/2/0
user@PE4> show route protocol bgp
inet.0: 20 destinations, 20 routes (20 active, 0 holddown, 0 hidden)
inet.3: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
vpn-customer.inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
172.16.33.0/30 *[BGP/170] 1w4d 00:43:33, localpref 100, from 192.168.20.3
AS path: I, validation-state: unverified
> to 10.1.43.2 via ge-0/0/0.0, Push 300080, Push 299936(top)
192.168.10.3/32 *[BGP/170] 1w4d 00:43:32, localpref 100, from 192.168.20.3
AS path: 65010 I, validation-state: unverified
> to 10.1.43.2 via ge-0/0/0.0, Push 300080, Push 299936(top)
192.168.10.4/32 *[BGP/170] 1w4d 01:56:57, localpref 100
AS path: 65010 I, validation-state: unverified
> to 172.16.44.1 via ge-0/0/1.0
mpls.0: 13 destinations, 13 routes (13 active, 0 holddown, 0 hidden)
bgp.l3vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
192.168.20.3:1:172.16.33.0/30
*[BGP/170] 1w4d 00:43:33, localpref 100, from 192.168.20.3
AS path: I, validation-state: unverified
> to 10.1.43.2 via ge-0/0/0.0, Push 300080, Push 299936(top)
192.168.20.3:1:192.168.10.3/32
*[BGP/170] 1w4d 00:43:32, localpref 100, from 192.168.20.3
AS path: 65010 I, validation-state: unverified
> to 10.1.43.2 via ge-0/0/0.0, Push 300080, Push 299936(top)
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
vpn-customer.inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
user@PE4> show route protocol ldp
inet.0: 20 destinations, 20 routes (20 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
224.0.0.2/32 *[LDP/9] 1w4d 02:05:35, metric 1
MultiRecv
inet.3: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
10.1.21.0/30 *[LDP/9] 1w4d 00:46:06, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Push 299888
10.1.32.0/30 *[LDP/9] 1w4d 00:45:23, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Push 299904
192.168.20.1/32 *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Push 299824
192.168.20.2/32 *[LDP/9] 1w4d 00:45:23, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Push 299920
192.168.20.3/32 *[LDP/9] 1w4d 00:45:23, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Push 299936
192.168.20.12/32 *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Push 299776
192.168.20.13/32 *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0
vpn-customer.inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
mpls.0: 13 destinations, 13 routes (13 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
299776 *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Pop
299776(S=0) *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Pop
299792 *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Swap 299776
299840 *[LDP/9] 1w4d 02:05:25, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Swap 299824
299904 *[LDP/9] 1w4d 00:46:06, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Swap 299888
299920 *[LDP/9] 1w4d 00:45:23, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Swap 299904
299936 *[LDP/9] 1w4d 00:45:23, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Swap 299920
299952 *[LDP/9] 1w4d 00:45:23, metric 1
> to 10.1.43.2 via ge-0/0/0.0, Swap 299936
bgp.l3vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
vpn-customer.inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
Status do roteador CE4
user@CE4> show route protocol bgp
inet.0: 11 destinations, 11 routes (11 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
172.16.33.0/30 *[BGP/170] 1w4d 00:46:22, localpref 100
AS path: 65020 I, validation-state: unverified
> to 172.16.44.2 via ge-0/0/0.0
192.168.10.3/32 *[BGP/170] 1w4d 00:46:21, localpref 100
AS path: 65020 65020 I, validation-state: unverified
> to 172.16.44.2 via ge-0/0/0.0
inet6.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
user@CE4> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 1 Peers: 1 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
2 2 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
172.16.44.2 65020 35346 35470 0 0 1w4d 2:00:25 Establ
inet.0: 2/2/2/0
user@CE4> ping 192.168.10.3 source 192.168.10.4 count 2
PING 192.168.10.3 (192.168.10.3): 56 data bytes
64 bytes from 192.168.10.3: icmp_seq=0 ttl=54 time=63.857 ms
64 bytes from 192.168.10.3: icmp_seq=1 ttl=54 time=19.586 ms
--- 192.168.10.3 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max/stddev = 19.586/41.721/63.857/22.135 ms
