WLC Series

Wireless LAN Controllers

WLC Series Wireless LAN Controllers deliver and manage wireless local area networks with the highest level of reliability, performance, security, and management in the industry. They integrate secure, wireless LANs with any size wired infrastructures, from small branch offices to the largest enterprise or university campus.

How to Buy

Compare All WLC Series Products

Product Comparison

WLC8WLC100WLC800WLC880WLC2800
ApplicationBranch OfficeBranch OfficeLarge EnterpriseLarge Enterprise CampusLarge Enterprise
Number of APs supported124 Base; 32 Max16 Base; 128 Max16 Base; 256 Max64 Base; 512 Max
License UpgradesN/AMultiples of 4Multiples of 16 or 32Multiples of 16 or 32Multiples of 64 or 128
Number of Ports/Type2 x 10/100BASE-T, 6 x 10/100 PoE2 x 1000BASE-T, 2 x 1000BASE-T PoE4 x 10/100/1000BASE-T (RJ-45); 4 x GbE (SFP)4 x 10/100/1000BASE-T (RJ-45); 4 x GbE (SFP)2 x 10GbE (XFP); 8 x 10/100/1000BASE-T (RJ-45) or 8 x GbE (SFP)
Redundant Power OptionsWLC8: Optional; WLC8R: StandardN/AIncluded as StandardIncluded as StandardOptional
Resiliency OptionsEtherchannel, 802.3ad, PVST + N:1 / N:N WLA to WLC FailoverEtherchannel, 802.3ad, PVST + N:1 / N:N WLA to WLC FailoverEtherchannel, 802.3ad, PVST+ N:1 / N:N WLA to WLC FailoverEtherchannel, 802.3ad, PVST+ N:1 / N:N WLA to WLC FailoverEtherchannel, 802.3ad, PVST+ N:1 / N:N WLA to WLC Failover
Dimensions (W x H x D)17.4 x 10.1 x 1.7 in (44.2 x 25.7 x 4.4 cm)9.05 x 5.51 x 1.72 in (23 x 14 x 4.37 cm)17.32 x 14.78 x 1.74 in (44 x 37.54 x 4.42 cm)17.32 x 14.78 x 1.74 in (44 x 37.54 x 4.42 cm)17.4 x 18 x 2.594 in (44.19 x 45.72 x 6.58 cm)
Maximum WeightOne PSU 8.5 lbs (3.8 kg)
Two PSU 9.5 lbs (4.3 kg)
2.81lb (1.27kg)11.6 lbs (5.2 kg)11.6 lbs (5.2 kg)One PSU 18 lbs (8.1 kg); Two PSU 19.5 lbs (8.77 kg)
TemperaturesOperating: 0 to +50° C
Storage: -20 to +70° C
Operating: 0 to +40° C
Storage: -20 to +70° C
Operating: 0 to +40° C
Storage: -20 to +70° C
Operating: 0 to +40° C
Storage: -20 to +70° C
Operating: 0 to +40° C
Storage: -40 to +70° C
Humidity (non condensing)10% - 90%5% - 9%10% - 90%10% - 90%10% - 90%
Input Power100-240 VAC. 50-60Hz Auto Sensing100-240 VAC. 50-60Hz Auto Sensing100-240 VAC. 50-60Hz Auto Sensing100-240 VAC. 50-60Hz Auto Sensing100-240 VAC. 50-60Hz Auto Sensing
Max Amperage Draw4.0 AMP at 115 VAC, 2.0 AMP at 230 VAC2.0 AMP at 120 VAC, 1.0 AMP at 230 VAC0.8 AMP at 120 VAC, 0.4 AMP at 230 VAC0.8 AMP at 120 VAC, 0.4 AMP at 230 VAC0.9 AMP at 120 VAC, 0.5 AMP at 230 VAC
  • WLC8

    WLC8 supports up to 12 access points in branch offices, small businesses, or small schools.

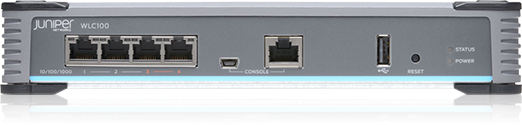

  • WLC100

    WLC100 handles up to 32 access points in small deployments, including branch offices and distributed branch offices.

  • WLC800

    WLC800 is for mainstream 802.11n deployment at large sites with up to 128 three-stream 802.11n access points.

  • WLC880

    Compact platforms for enterprise applications, space and power constrained service provider facilities.

  • WLC2800

    WLC2800 is designed for mass deployment of wireless LAN access in large enterprises with support for up to 512 802.11n access points.

  • JunosV Wireless LAN Controller

    JunosV Wireless LAN Controller is a cost-effective alternative to physical controllers. It is a scalable, virtualized software-based controller optimized for distributed campus environments.

  • Integrates WLAN and wired networks

    Controllers that integrate the WLAN with the wired network to fulfill the requirements of even the most demanding mobile applications and users.

  • Reliable and high performing

    Deliver and manage wireless LANS with the highest level of reliability, performance, security, and management in the industry.

  • Nonstop wireless availability

    Virtual Controller Cluster that provides many-to-many redundancy without “hot-standby” controllers for nonstop wireless availability with hitless failover for all sessions, even VoIP, in the event of a network failure.

  • Models for every size organization

    Models sized to meet any need in any sized organization.
