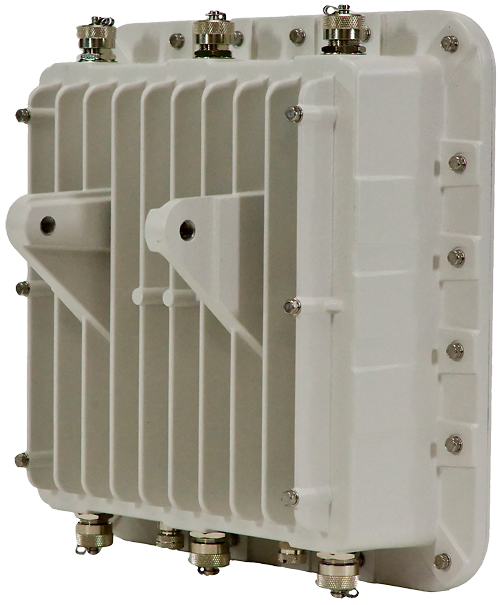

The WLA632 Wireless LAN Access Point is a ruggedized dual-radio 3x3 MIMO access point designed for outdoor deployment in all weather conditions. As well as enabling wireless users to stay seamlessly connected as they roam from building to building, it also provides mesh services to extend wireless access in areas where Ethernet cabling cannot reach or is not desired. Point-to-point bridging is also supported, allowing the WLA632 to interconnect different sites over the air, without needing to lay or lease fiber.
It is simple to deploy, easy to manage, and supports any kind of mobility service, including data, voice, video, and location, over wireless connections. It delivers an enterprise-class feature set in a ruggedized, weatherproof enclosure suitable for extreme outdoor environments.
Features:
- Dual radio 3x3 MIMO for aggregate data rates up to 600 Mbps
- 10/100/1000 Ethernet connectivity via ruggedized 8 pin DIN connector
- Automatically calculates data integrity and RF signal strength
- Continuously tunes for optimal RF channel and transmit power
- Prioritizes delay-sensitive voice and other critical applications
- Supports many external antenna options with easy alignment
- Can serve as high-speed mesh access point, mesh portal to extend WLAN coverage
- Supports bridging to interconnect sites over wireless backhaul instead of fiber
- Optimizes RF spectrum utilization in mesh portal mode
- Configurable radios in 2.4 GHz and 5 GHz bands
- Support for Smart Mobile intelligent switching in all mesh modes
The WLA632 has a dedicated 48 VDC power port, complies with NEMA4X and IP67 standards for corrosion resistance, and features built-in lightning and surge protection along with automatic thermal management.
Wi-Fi Multimedia (WMM) or SpectraLink Voice Priority (SVP) can be configured to ensure optimal QoS for voice traffic. Built-in policies allow per user, protocol, or class-of-service (CoS) mapping.
The WLA632 plays a key role in rogue and intrusion detection as well as denial-of-service (DoS) attack detection. Its ActiveScan feature allows it to scan all active 802.11 bands, channels, and VLANs while simultaneously providing wireless connectivity to mobile clients. Its SentryScan feature allows the WLA632 to act as a dedicated sentry and provide non-stop scanning.
Outdoor Dual Radio a/b/g/n
802.11a, 802.11b, 802.11g, 802.11n
64
Yes
Yes
- ActiveScan
- SentryScan
1 x 10/100/1000 (8-pin DIN)
3 x 3 MIMO, 2 Streams
N/A
6 x N-type jack
48VDC power port on ruggedized 8-pin (male) DIN connector
- 11.18 (W) x 11.18 (H) x 5.53 (D) in (284 (W) x 284 (H) x 140.5 (D) cm)
- 9.8 lbs (4.44 Kg)
- Operating: -40 to +50° C
- Storage: -40 to +70° C
10% - 95%
90-220 VAC, 12-48 VDC, 30W
3 dual-color LEDs
802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP
802.11e, WMM, TSPEC, U-APSD
319 KB ]
|
| Part Number | Description |
|---|---|
| WLA632-US | Outdoor AP, dual radios 802.11a/b/g/n 3x3 MIMO (2SS), single 1000BASe-T PoE Ethernet port, external female Type N connectors. Outdoor power supply included. Required for operation in USA. |
| WLA632-WW | Outdoor AP, dual radios 802.11a/b/g/n 3x3 MIMO (2SS), single 1000BASe-T PoE Ethernet port, external female Type N connectors. Outdoor power supply included. Worldwide operation except US and Israel. |
| WLA632-IL | Outdoor AP, dual radios 802.11a/b/g/n 3x3 MIMO (2SS), single 1000BASe-T PoE Ethernet port, external female Type N connectors. Outdoor power supply included. 5 GHz operation not supported per regulation. Required for operation in Israel. |
| Power Accessories | |
| WLA-XPS9001GO-INTL | Outdoor 802.3at compliant Gigabit PoE midspan power supply with International power cord. 100-240 VAC 50-60Hz input. Ships with mounting bracket. For World-wide operation except countries following North America Safety Standards. |
| WLA-XPS9001GO-NA | Outdoor 802.3at compliant Gigabit PoE midspan power supply with North American connector. 100-240 VAC 50-60Hz input. Ships with mounting bracket. For operation in countries following North America Safety Standards. |
| External Antennas | |
| WLA-ANT5007-OUT | Outdoor two-element cross-polarized high-gain directional panel antenna for 11n 5 GHz band. |
| WLA-ANT74520-OUT | Indoor/outdoor dual-band three-element directional panel antenna for 11n. 10.9 dB (13.5 dB) gain in the 2.4 GHz (5 GHz) band and 45 degree (20 degree) horizontal beamwidth in the 2.4 GHz (5 GHz) band. |
| WLA-ANT77555-OUT | Indoor/outdoor dual-band three-element directional panel antenna for 11n, 8 dB (10.7 dB) gain in the 2.4 GHz (5 GHz) band and 75 degree (55 degree) horizontal beamwidth in the 2.4 GHz (5 GHz) band. |
| WLA-ANTCBL3MM-OUT | 3m M/M ULA400 cable with Type N connectors for extension of outdoor antennas. |
| WLA-ANTPROT-OUT | N-male to N-female lightning protector for direct mount. |
| WLA-ANTLGTNG-OUT | Lightning arrestor kit for outdoor antenna installations. Includes F/F Type N Bulkhead with 0-6 GHz range, 3m M/M Type N ULA400 low loss cable, and grounding attachment. |
