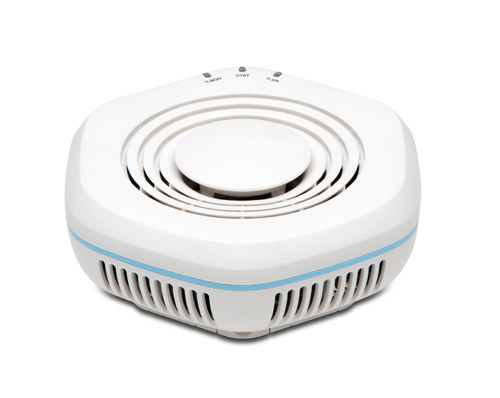

WLA532

802.11n, high-performance, 3x3 MIMO indoor WLAN access point

WLA532 is an integrated, high-performance, 3x3 MIMO, 3 spatial stream, 802.11n indoor dual-radio access point with internal antenna, in an aesthetically pleasing package.

Product Media Viewer

Overview

WLA532 delivers great user experience and lower operating and capital costs by tightly integrating security, performance, and manageability with great reliability.

Its energy-efficient 802.3af PoE power design, dual radios, 3x3 MIMO, 3 stream, and 1GbE uplink port, are packaged in the smallest footprint in its class. And its six internal cross-polarized antennas use 5 degree down-tilt to deliver maximum signal strength.

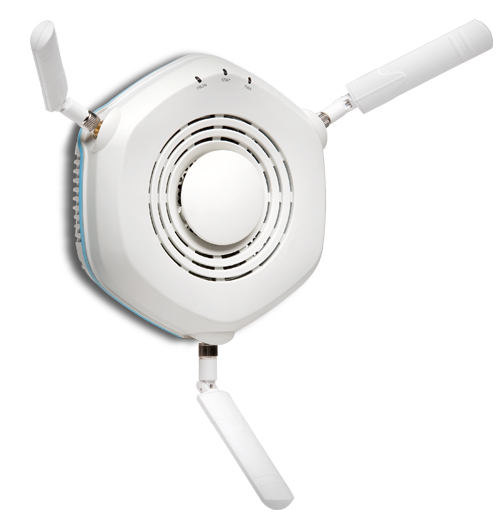

WLA532 requires fewer access points per floor reducing CapEx, and improved reliability reduces IT staff for lower OpEx. The WLA532E external antenna plenum rated model allows for more deployment flexibility.

WLA532 delivers 450 Mbps link speed per radio for 10x better performance than legacy 802.11a/g, and 50 percent more bandwidth and capacity than previous generation 11n access points.

Local switching provides low latency and high performance, and advanced VLAN tunneling, and dynamic RF auto-tuning management provides cutting-edge performance.

Read more

Features

  • Encryption and security offloads security enforcement from central resources.
  • Intelligent switching performs switching remotely.
  • Band steering optimizes bandwidth.
  • Client load balancing enhances overall WAN performance.
  • Dynamic authorization offloads policy management from central resources.
  • QoS and bandwidth management offloads quality-of-service (QoS) services from central resources.
  • Spectrum and location scanning optimizes access point load distribution.
  • Wireless intrusion prevention enhances WLAN security.

Specs

Maximum WeightWLA532:13.87 oz (393.2 g)
WLA532E: 25.18 oz (714 g)
Power Options802.3af compliant Ethernet switch or PoE injector
TemperaturesOperating: 0 to +50° C
Storage: -25 to +70° C
Humidity (non condensing)5% - 95%
Dimensions (W x H x D)Height: 5.71 in, 14.5 cm, Width: 5.37 in, 13.65 cm, Depth: 2.11 in, 5.35 cm
Power DrawWLA532: 10 W (3x3 MIMO:3SS)
WLA532E: 12.95 W (3x3 MIMO:3SS)
ApplicationIndoor Dual Radio a/b/g/n
View full spec sheet

Product Specs

WLA532
Maximum WeightWLA532:13.87 oz (393.2 g)
WLA532E: 25.18 oz (714 g)
Power Options802.3af compliant Ethernet switch or PoE injector
TemperaturesOperating: 0 to +50° C
Storage: -25 to +70° C
Humidity (non condensing)5% - 95%
Dimensions (W x H x D)Height: 5.71 in, 14.5 cm, Width: 5.37 in, 13.65 cm, Depth: 2.11 in, 5.35 cm
Power DrawWLA532: 10 W (3x3 MIMO:3SS)
WLA532E: 12.95 W (3x3 MIMO:3SS)
ApplicationIndoor Dual Radio a/b/g/n
Wireless Protocols802.11a, 802.11b, 802.11g, 802.11n
Number of SSIDs supported64
Local SwitchingYes
Bridging and MeshYes
WIDS/WIPS SupportActiveScan
SentryScan
Interfaces1x 10/100/1000 PoE (RJ-45)
802.11n Configuration3 x 3 MIMO, 3 Streams
Internal Antennas6 x Omni-directional (Spatial diversity)
External Antenna PortsWLA532: N/A
WLA532E: 3 RP-SMA ports
Status Indicators3 dual-color LEDs
Security802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP
Quality of Service802.11e, WMM, TSPEC, U-APSD
