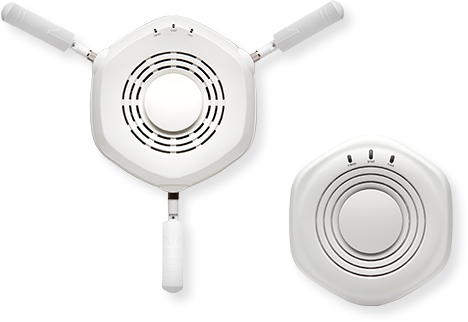

WLA Series

Wireless LAN Access Points

WLA Series access points provide complete client access, spectrum analysis, mesh, and bridging services for indoor or outdoor deployments of wireless LANs. They support 802.11n to deliver seamless mobility and the performance required for wireless data, VoIP, video, and real-time location services.

How to Buy

Compare All WLA Series Products

Product Comparison

WLA321WLA322WLA522WLA532WLA632
Maximum Weight6.92 oz (196 g)7.24 oz (205 g)1.25 lbs (567g)WLA532:13.87 oz (393.2 g)
WLA532E: 25.18 oz (714 g)
9.8 lbs (4.44 Kg)
Power Options802.3af compliant Ethernet switch or PoE injector802.3af compliant Ethernet switch or PoE injector802.3af compliant Ethernet switch or PoE injector802.3af compliant Ethernet switch or PoE injectorOperating: -40 to +50° C
Storage: -40 to +70° C
TemperaturesOperating: 0 to +50° C
Storage: -40 to +70° C
Operating: 0 to +50° C
Storage: -40 to +70° C
Operating: 0 to +50° C
Storage: -40 to +70° C
Operating: 0 to +50° C
Storage: -25 to +70° C
-40 to +50° C
Humidity (non condensing)10% - 95%10% - 95%10% - 95%5% - 95%10% - 95%
Dimensions
Power Draw7 W (2x2 MIMO:2SS)8 W (2x2 MIMO:2SS)12.95 W per 802.3afWLA532: 10 W (3x3 MIMO:3SS)
WLA532E: 12.95 W (3x3 MIMO:3SS)
90-220 VAC, 12-48 VDC, 30W
ApplicationIndoor Single Radio a/b/g/nIndoor Dual Radio a/b/g/nIndoor Dual Radio a/b/g/nIndoor Dual Radio a/b/g/nOutdoor Dual Radio a/b/g/n
Wireless Protocols802.11a, 802.11b, 802.11g, 802.11n802.11a, 802.11b, 802.11g, 802.11n802.11a, 802.11b, 802.11g, 802.11n802.11a, 802.11b, 802.11g, 802.11n802.11a, 802.11b, 802.11g, 802.11n
Number of SSIDs supported3264646464
Local SwitchingYesYesYesYesYes
Bridging and MeshYesYesYesYesYes
WIDS/WIPS SupportActiveScan
SentryScan
ActiveScan
SentryScan
ActiveScan
SentryScan
ActiveScan
SentryScan
ActiveScan
SentryScan
Interfaces1 x 10/100/1000 PoE (RJ-45)1x 10/100/1000 PoE (RJ-45)1 x 10/100/1000 POE (RJ-45)1x 10/100/1000 PoE (RJ-45)1 x 10/100/1000 (8-pin DIN)
802.11n Configuration2 x 2 MIMO, 2 Streams2 x 2 MIMO, 2 Spatial Streams2 x 2 MIMO, 2 Streams3 x 3 MIMO, 3 Streams3 x 3 MIMO, 2 Streams
Internal Antennas4 x Omni-directional (Spatial diversity)4 x Omni-directional (Spatial diversity)4 x Omni-directional (Spatial diversity)6 x Omni-directional (Spatial diversity)N/A
External Antenna PortsN/AN/A4 x R-SMA jack (WLA522E only)WLA532: N/A
WLA532E: 3 RP-SMA ports
6 x N-type jack
Status Indicators3 dual-color LEDs3 dual-color LEDs3 dual-color LEDs3 dual-color LEDs3 dual-color LEDs
Security802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP802.1X, WPA, WPA2, 802.11i, PMK Caching, AES, TKIP
Quality of Service802.11e, WMM, TSPEC, U-APSD802.11e, WMM, TSPEC, U-APSD802.11e, WMM, TSPEC, U-APSD802.11e, WMM, TSPEC, U-APSD802.11e, WMM, TSPEC, U-APSD
  • WLA321 Wireless LAN Access Point

    WLA321 Wireless LAN Access Point is an entry level 802.11n, single radio, 2x2 MIMO, 2 spatial stream indoor WLAN access point with internal antennas.

  • WLA322 Wireless LAN Access Point

    WLA322 Wireless LAN Access Point is an entry level 802.11n, dual-radio, 2x2 MIMO, 2 spatial stream indoor WLAN access point with internal antennas.

  • WLA522 Wireless LAN Access Point

    WLA522 Wireless LAN Access Point is a high-performance 802.11n, dual-radio, 2x2 MIMO indoor WLAN access point for high-density deployments.

  • WLA532 Wireless LAN Access Point

    WLA532 Wireless LAN Access Point is a high-performance 802.11n, dual radio, 3x3 MIMO indoor WLAN access point designed for very high-density environments.

  • WLA632 Wireless LAN Access Point

    WLA632 Wireless LAN Access Point is a ruggedized 802.11n dual-radio 3x3 MIMO outdoor access point for high-performance client access, bridging and mesh services.

Large or small deployments

Can be deployed in large enterprise environments or in small branch locations away from a main campus in a controller-less plug-and-play model.

  • Complete wireless services

    Provide complete client access, spectrum analysis, mesh, and bridging services.

  • Seamless mobility

    Support 802.11n to deliver seamless mobility in indoor and outdoor deployments with scalable deployment and performance required for wireless data, VoIP, video, and real-time location services.

  • Built-in security

    Provide built-in security and networking services, and advanced performance and scalability features to inspect and forward traffic locally and perform encryption and security enforcement at the access point.

  • Band steering and client load balancing

    Provide band steering, client load balancing, dynamic authorization, quality of service (QoS), bandwidth controls, and dynamic call admission control to ensure a consistent user experience.
