XRE200 External Routing Engine

Additional processing power and control for EX8200 switches

This server-based appliance provides additional processing power and control plane scalability for managing EX8200 Virtual Chassis configurations.

    Product Media Viewer

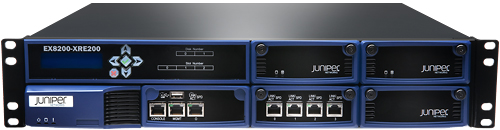

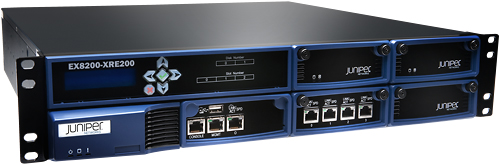

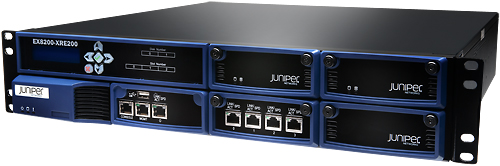

    XRE200 External Routing Engine

    Overview

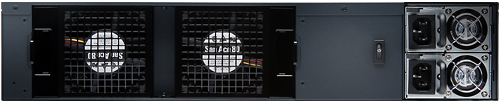

    The XRE200 external routing engine includes redundant 160 GB hard drives, redundant hot-swappable power supplies, and hot-swappable fans to provide a stable environment and additional processing power for supporting EX8200 Virtual Chassis performance.

    The front panel LCD is used for booting the device, configuration management, switch alarm reporting, and LED status. A front panel Ethernet connector is for console management, and the USB drive port provides extra storage.

    By externalizing control plane functionality and separating it from the data plane running on the actual switch fabric, the XRE200 implements a highly reliable design that includes no single point of failure.

      Specs

      Dimensions (W x H x D)17.26 in x 3.5 in x 17.72 in (43.84 cm x 8.8 cm x 45 cm)
      2 rack units
      Maximum Weight29 lbs (13.15 kg)
      Layer 2 SwitchingGVRP*
      Physical port redundancy: redundant trunk group (RTG)*
      STP/RSTP (802.1D-2004)
      VSTP (Compatible with PVST+)
      STP enable/disable per port
      MSTP (802.1Q-2003)
      Number of MST instances supported: 64
      Link Layer Discovery Protocol (LLDP)*
      Layer 3 Features: IPv4Routing protocols: RIPv1/v2, OSPF v2, BGP, IS-IS
      Static routing
      Routing policy
      Bidirectional Forwarding Detection
      Layer 3 redundancy: VRRP
      Layer 3 sub-interfaces
      IP directed broadcast
      ResiliencyDual internal load-sharing AC power supplies; redundant variable-speed fans
      Power OptionsAutosensing; 110/220 VAC; 60/50 Hz
      Operating SystemJunos
      View full spec sheet

      Product Specs

      XRE200
      Dimensions (W x H x D)17.26 in x 3.5 in x 17.72 in (43.84 cm x 8.8 cm x 45 cm)
      2 rack units
      Maximum Weight29 lbs (13.15 kg)
      Layer 2 SwitchingGVRP*
      Physical port redundancy: redundant trunk group (RTG)*
      STP/RSTP (802.1D-2004)
      VSTP (Compatible with PVST+)
      STP enable/disable per port
      MSTP (802.1Q-2003)
      Number of MST instances supported: 64
      Link Layer Discovery Protocol (LLDP)*
      Layer 3 Features: IPv4Routing protocols: RIPv1/v2, OSPF v2, BGP, IS-IS
      Static routing
      Routing policy
      Bidirectional Forwarding Detection
      Layer 3 redundancy: VRRP
      Layer 3 sub-interfaces
      IP directed broadcast
      ResiliencyDual internal load-sharing AC power supplies; redundant variable-speed fans
      Power OptionsAutosensing; 110/220 VAC; 60/50 Hz
      Operating SystemJunos
      WarrantyStandard one-year warranty
