Hardware Specifications
- Hard Drives: 2 x 500 GB
RAID 1 - Memory: 8 GB
- Maximum Events per Second: 500
- Maximum Flows per Minute: 15, 000
Dimensions and Power
- Dimensions (W x H x D):17.72 x 3.5 in x 17.26(45 x 8.8 x 43.84 cm)
- Weight: 26 lb 2 oz
- Rack Mountable: 2U
- Power supply (AC): 90 V to 264 V hot swap dual redundant 400 watt AC power module
- Power supply (DC): 90 V to 264 V hot swap dual redundant 710 watt DC power module with optional 48 V DC power supply
- Simultaneous AC and DC Modules Support: Yes
- Chassis Material: 18 gauge cold rolled steel

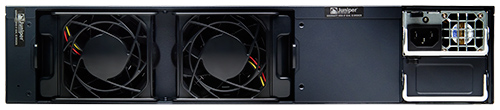

- Fans: 2 x 80 mm hot swap redundant fans (2nd optional)
- Traffic Ports: 2x RJ45 10/100/1000
- Console Port: 1x RJ45 serial console
Environment
- Operating Temperature: 41° to 104° F (5° to 40° C)
- Storage Temperature: -40° to 158° F (-40° to 70° C)
- Relative Humidity (Operating): 8 to 90 percent noncondensing
- Relative Humidity (Storage): 5 to 95 percent noncondensing
- Altitude (Operating): 10,000 ft maximum
- Altitude (Storage): 40,000 ft maximum
Key Benefits of Correlating Data with Juniper Networks STRM Series Security Threat Response Managers
Download
[
2.34 MB ]
2.34 MB ]
|
| Model Number | Description |
|---|---|
| STRM500 Base Unit | |
| STRM500-A-BSE | STRM500 base HW appliance only |
| STRM500-ADD-250E-7500F | License to add up to 250 EPS and7500 Flows Qflow/Sflow, which equals to 15K J/Netflow |
| Log Management Option | |
| STRM500-LM-ADD-250E | License to add up to 250 EPS forLog Management only; requiresSTRM500-A-BSE |
| Upgrade Log Management to Full STRM Series Functionality | |
| STRM500-LM-250E-TM | License to upgrade to full STRMSeries Functionality with 250 EPS and 7500 FPS Qflow/Sflow, which equals to 15K J/Netflow |
| QFlow Collector | |
| UNIV-1GE-4ETH | 4-port 10/100/1000 MB Ethernet card |
| STRM500-QFC-ADD-50MB | STRM Series Q-Flow Collector for aggregate speed up to 50 MB; requiresUNIV-1GE-4ETH to reach 200 MB |
| Devices | |
| STRM-ADD-DEV-50 | License to add additional device supportin either Log Management or ThreatManagement solution in increments of 50devices; supports STRM500, STRM2500and STRM5000 |
