ScreenOS version tested
ScreenOS 6.2
ScreenOS 6.2
Firewall Perf (Large Packets)
350+ Mbps
350+ Mbps
Firewall Performance (IMIX)
300 Mbps
300 Mbps
Firewall Packets Per Second
100,000 PPS
100,000 PPS
3DES+SHA-1 VPN Perf
100 Mbps
100 Mbps
Concurrent VPN Tunnels
500
500
Max Concurrent Sessions
48,000
48,000
New Sessions/Second
8,000
8,000
Max Security Policies
1,000
1,000
Max Security Zones
40
40
Max Virtual Routers
6
6
Max Virtual LANs
100
100
Fixed I/O
8x10/100, 2x10/100/1000
8x10/100, 2x10/100/1000
Mini-Physical Interface Module (Mini-PIM) Expansion Slots
0
0
Physical Interface Module (PIM) Expansion Slots
4
4
Enhanced PIM (EPIM) Expansion Slots
0
0
802.11 a/b/g
No
No
Convertible to JUNOS
No
No
ISDN BRI S/T PIM
Download
[
656 KB ]
ADSL/ADSL2/ADSL2+ Physical Interface Modules
Download
[ 934 KB ]
Ethernet Universal Physical Interface Modules
Download
[ 1.73 MB ]
Physical Interface Module (PIM) Compatibility Matrix for J Series Routers and SSG Series Secure Services Gateways
Download
[ 215 KB ]
Dual-Port T1/E1 Physical Interface Module
Download
[ 1.15 MB ]
Dual-Port Synchronous Serial Physical Interface Module
Download
[ 887 KB ]
G.SHDSL Physical Interface Module
Download
[ 1.19 MB ]

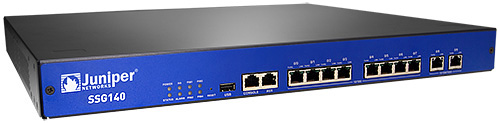

SSG140 Secure Services Gateway
Download
[ 910 KB ]
| Part Number | Description |
|---|---|
| SSG140 | |
| SSG-140-SB | SSG140 with 256 MB memory, 0 PIM cards, AC power |
| SSG-140-SH | SSG140 with 512 MB memory, 0 PIM cards, AC power |
| SSG140 I/O Options | |
| JX-1BRI-ST-S | 1 Port ISDN BRI S/T PIM |
| JX-2E1-RJ48-S | 2 Port E1 PIM with integrated CSU/DSU |
| JX-2T1-RJ48-S | 2 Port T1 PIM with integrated CSU/DSU |
| JX-2Serial-S | 2 Port Serial PIM |
| JX-1ADSL-A-S | 1 Port ADSL 2/2+ Annex A PIM |
| JX-2SHDSL-S | 1 Port G.SHDSL PIM |
| JXU-6GE-SFP-S | 6 Port SFP Gigabit Ethernet Universal PIM* |
| JXU-1SFP-S | 1 Port SFP 100 Mbps or Gigabit Ethernet Universal PIM* (SFP sold separately) |
| JXU-8GE-TX-S | 8 Port Gigabit Ethernet 10/100/1000 Copper Universal PIM* |
| JXU-16GE-TX-S | 16 Port Gigabit Ethernet 10/100/1000 Copper Universal PIM* |
| JX-1ADSL-B-S | 1 Port ADSL 2/2+ Annex B PIM |
| JX-1ADSL-B-S | 1 Port ADSL 2/2+ Annex B PIM |
| *uPIMs are only supported in ScreenOS 6.0 or greater releases | |
| Unified Threat Management/Content Security (High Memory Option Required) | |
| NS-K-AVS-SSG140 | Antivirus (Anti-spyware, Anti-phishing) |
| NS-DI-SSG140 | IPS (Deep Inspection) |
| NS-SPAM-SSG140 | Anti-spam |
| NS-WF-SSG140 | Web filtering |
| NS-RBO-CS-SSG140 | Remote Office Bundle (AV, IPS, WF) |
| NS-SMB-CS-SSG140 | Main Office Bundle (AV, IPS, WF, AS) |
| Note: The appropriate power cord is included based upon the sales order "Ship To" destination. Note: XX denotes Region Code for Wireless devices. Not all countries are supported. Note: For renewal of Content Security Subscriptions, add "-R" to above SKUs. Note: For 2 year Content Security Subscriptions, add "-2" to above SKUs. Note: For 3 year Content Security Subscriptions, add "-3" to above SKUs. |
|
| SSG140 Memory Upgrades, Spares and Communications Cables | |
| SSG-100-MEM-512 | 512 MB DIMM Memory upgrade |
| CBL-JX-PWR-AU | Power Cable, Australia |
| CBL-JX-PWR-CH | Power Cable, China |
| CBL-JX-PWR-EU | Power Cable, Europe |
| CBL-JX-PWR-IT | Power Cable, Italy |
| CBL-JX-PWR-JP | Power Cable, Japan |
| CBL-JX-PWR-UK | Power Cable, UK |
| CBL-JX-PWR-US | Power Cable, US |
| JX-Blank-FP-S | Blank I/O plate |
| JX-CBL-EIA530-DTE | EIA530 cable (DTE) |
| JX-CBL-RS232-DTE | RS232 cable (DTE) |
| JX-CBL-RS449-DTE | RS449 cable (DTE) |
| JX-CBL-V35-DTE | V.35 cable (DTE)) |
| JX-CBL-X21-DTE | X.21 cable (DTE) |
| Note: The appropriate power cord is included based upon the sales order "Ship To" destination | |
