SRX650

Ideal for securing regional distributed enterprise locations

The SRX650 Services Gateway provides scalable, robust, next-generation enterprise-class security and networking for regional sites and large branch locations.

Product Media Viewer

Overview

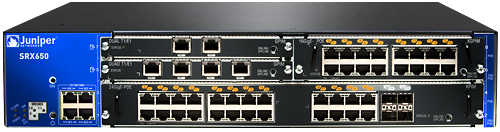

The SRX650 Services Gateway is a 2 U device that consolidates security, routing, switching, and WAN connectivity. It supports up to 7.0 Gbps firewall, 1.5 Gbps IPsec VPN, and 900 Mbps intrusion prevention system (IPS).

Unified threat management (UTM) features include: antivirus, application security, IPS, antispam, and enhanced Web filtering. Integrated security intelligence offers adaptive threat protection against command and control (C&C) related botnets and Web application threats, as well as policy enforcement based on GeoIP data coming from Juniper provided feeds. Customers may also leverage their own custom and third-party feeds for protection from advanced malware and other threats. The SRX650 Services Gateway is ideally suited for securing regional distributed enterprise locations.

The SRX650 Services Gateway has a modular 2 U chassis that fits a 19-inch rack with a depth of approximately 18.1 inches. It provides cost-effective, scalable integration of routing, security, and other midrange applications for regional, distributed, enterprise sites.

Features

  • Comprehensive protection includes multi-gigabit firewall, security intelligence via Spotlight Secure, policy enforcement based on GeoIP data, UTM which includes IPS, application security (AppSecure), user role-based firewall controls, antivirus, antispam, and Web filtering, NAT, DoS, and QoS.
  • Scalable performance enables additional services without degradation.
  • System and network resiliency ensures carrier-class reliability from redundant hardware and components, and Junos OS software.
  • Interface flexibility meets the needs of any network.
  • Network segmentation allows administrators to tailor security and policies.
  • Robust Routing Engine separates data and control planes to allow deployment of consolidated routing and security devices.

Specs

Junos OS Software version testedJunos OS 11.4R5
Firewall performance (max)7 Gbps
IPS performance (NSS 4.2.1)1 Gbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance1.5 Gbps
Maximum concurrent sessions512,000
New sessions/second (sustained, TCP, 3-way)35,000
Maximum security policies8,192
View full spec sheet

Products Specs

SRX650
Junos OS Software version testedJunos OS 11.4R5
Firewall performance (max)7 Gbps
IPS performance (NSS 4.2.1)1 Gbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance1.5 Gbps
Maximum concurrent sessions512,000
New sessions/second (sustained, TCP, 3-way)35,000
Maximum security policies8,192
Maximum security intelligence data feed entries in firewall rules database600,000 IPs and 50,000 URLs
