Junos OS version tested
Junos OS 10.4.r1
Junos OS 10.4.r1
Firewall performance (max)
750 Mbps
750 Mbps
IPS performance (NSS 4.2.1)
60 Mbps
60 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance
65 Mbps
65 Mbps
Maximum concurrent sessions
32 K (Base) / 64 K (High Mem)
32 K (Base) / 64 K (High Mem)
New sessions/second (sustained, TCP, 3-way)
2,000
2,000
Maximum security policies
512
512
Maximum users supported
Unrestricted
Unrestricted
Maximum available slots for IOCs
N/A
N/A
WAN / LAN fixed ports
- 2 x 10/100/1000BASE-T + 6 x 10/100 BASE-T
- 2 x 3G/4G USB port
CX111 3G/4G modem support
Yes
Yes
WAN / LAN PIMs
- T1/E1
- ADSL2 Annex A
- ADSL2 Annex B
- G.SHDSL
- VDSL2 Annex A
- DOCSIS 3.0 Cable Modem
- GbE SFP
- Sync Serial
High-availability support
Yes
Yes
AppSecure Services
Junos OS 11.4
Junos OS 11.4
Dimensions and Power
- Dimensions (W x H x D): 11.02 x 1.73 x 7.12 in (28.0 x 4.4 x 18.1 cm)
- Weight: Chassis: 3.3 lb (1.5 kg) Non-PoE / 4.4 lb (2 kg) PoE No interface modules
- Power supply (AC): 100–240 VAC, 60 W (Non-PoE) / 150 W PoE
- Maximum power draw: 50 W
- Average power consumption: 27 W Low Memory (LM), 28 W High Memory (HM), 84 W (PoE)
Configuring the CX111 for J Series and Branch SRX Series Devices
Download
[
602 KB ]
602 KB ]
Configuring the 3G ExpressCard on the SRX210 Services Gateway
Download
[ 380 KB ]
380 KB ]
Configuring and Deploying the AX411 Wireless Access Point
Download
[ 730 KB ]
730 KB ]
SRX Series and J Series Network Address Translation
Download
[ 635 KB ]
635 KB ]
Juniper Networks SRX Series and J Series NAT for ScreenOS Users
Download
[ 283 KB ]
283 KB ]
Branch SRX Series Services Gateways Golden Configurations
Download
[ 1.09 MB ]
1.09 MB ]
Web Filtering For Branch SRX Series and J Series
Download
[ 333 KB ]
333 KB ]
Antivirus for Branch SRX Series and J Series
Download
[ 333 KB ]
333 KB ]
|
| Model Number | Description |
|---|---|
| Base System | |

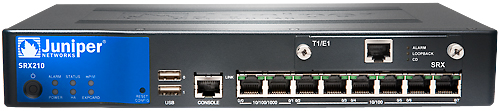

| SRX210B | SRX210 Services Gateway with 2 GbE + 6 Fast Ethernet ports, 1 Mini-PIM slot, 1 ExpressCard slot and base memory (512 MB RAM, 1 GB Flash) |
| SRX210H | SRX210 Services Gateway with 2 GbE+ 6 Fast Ethernet ports, 1 Mini-PIM slot, 1 ExpressCard slot and high memory (1 GB RAM, 1 GB Flash) |
| SRX210H-POE | SRX210 Services Gateway with 2 GbE + 6 Fast Ethernet ports, 1 Mini-PIM slot, 1 ExpressCard slot and high memory (1 GB RAM, 1 GB Flash), with 4 ports PoE (50 W) |
| Interface Modules | |
| SRX-MP-1SERIAL | 1 port Sync Serial Mini Physical Interface Module (Mini-PIM) for branch SRX Series |
| SRX-MP-1ADSL2-A | 1-port ADSL2+ Mini-PIM supporting ADSL/ADSL2/ADSL2+ Annex A |
| SRX-MP-1ADSL2-B | 1-port ADSL2+ Mini-PIM supporting ADSL/ADSL2/ADSL2+ Annex B |
| SRX-MP-1SFP | 1-port SFP Mini Physical Interface Module (Mini-PIM) for branch SRX Series |
| SRX-MP-1T1E1 | 1-port T1 or E1 Mini Physical Interface Module (Mini-PIM) for branch SRX Series |
| Additional Hardware | |
| SRX210-DESK-STAND | SRX210 desk top stand. Holds one unit. |
| SRX210-RMK | SRX210 Rack mount kit for 19 in rack. Holds one unit. |
| SRX210-WALL-KIT | SRX210 wall mount kit. Holds one unit. |
| 3G ExpressCard | |
| EXPCD-3G-CDMA-V | CDMA/EVDO 3G Modem ExpressCard34 for Verizon Wireless. For SRX and CX-Series. Ships with an external Antenna. |
| EXPCD-3G-CDMA-S* | CDMA/EVDO 3G Modem ExpressCard34 for Sprint. For SRX and CX-Series. Ships with an external Antenna. |
| ANT-EXPCD-3G-MAG-TS9 | Spare external multi-band omnidirectional Antenna with TS-9 connector, for 3G ExpressCards for SRX. |
*Available as of Q1 2010
