The SRX110 Series gateways provide next generation, enterprise class security and networking for today’s small businesses and branch offices.
The SRX110 cost effectively addresses the security and routing needs of small sites and managed telecommuters with an integrated solution that delivers:
- Next Generation Firewall, IPSec VPN, Network Intrusion Prevention, best-in-class URL Filtering, Anti-Virus, Anti-Spam, and advanced Web 2.0 application identification for greater visibility, enforcement and control
- A rich set of advanced routing protocols (BGP, OSPF, RIP, IPv4, IPv6), MPLS, VPLS, Layer 2 and Layer 3 VPNs
- Anytime service enablement, allowing services to be activated simply and easily when needed to address new security threats.

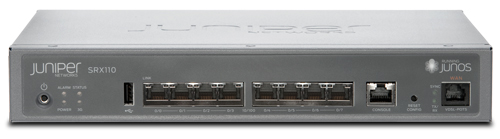

The SRX110 provides eight fast Ethernet ports and two USB ports, which support 3G for WAN backup. It features a built-in VDSL/ADSL2+ WAN port for additional flexibility and cost savings. Built on Junos, with the same carrier-grade, consistent software and features that are deployed in the core, the SRX110 Series gateways simplify management and promote ease of use while lowering training costs.
Junos OS version tested
Junos OS 11.2.r3
Junos OS 11.2.r3
Firewall performance (max)
700Mbps
700Mbps
IPS performance (NSS 4.2.1)
60 Mbps
60 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance
65 Mbps
65 Mbps
Maximum concurrent sessions
32K
32K
New sessions/second (sustained, TCP, 3-way)
1,800
1,800
Maximum security policies
384
384
Maximum users supported
Unrestricted
Unrestricted
Maximum available slots for IOCs
N/A
N/A
WAN / LAN fixed ports
- 8 x 10/100BASE-T
- 1 x 3G USB port
- VDSL2/ADSL2+ dedicated
- WAN (Annex A or Annex B)
CX111 3G/4G modem support
Yes
Yes
WAN / LAN PIMs
N/A
N/A
High-availability support
Not available
Not available
AppSecure Services
Junos OS 11.4
Junos OS 11.4
Dimensions and Power
- Dimensions (W x H x D): 11.02 x 1.72 x 8.385 in (28 x 4.37 x 21.3 cm)
- Weight [device and power supply]: 6.7lb/3.06Kg
- Chassis: 3.5 lbs (1.6kg)
- Power supply (AC): —240 VAC, 60 W
- Maximum power draw: 29 W
- Average power consumption: 24 W
Security Services Gateways
Download
[
751 KB ]
751 KB ]
|
| Model Number | Description |
|---|---|
| Base System | |
| SRX110H-VA | SRX services gateway 110 with 8xFE ports, 1G RAM & Flash, 1-port VDSL2/ADSL2+ over POTS, USB port for cellular modem connectivity. External PS and Cord included. |
| SRX110H-VB | SRX services gateway 110 with 8xFE ports, 1G RAM & Flash, built-in 1-port VDSL2/ADSL2 over ISDN BRI. USB port for cellular modem connectivity. External PS and Cord included. |
| Additional Hardware | |
| SRX-110-RMK | SRX110 19" rack-mount kit. Holds one unit. |
| SRX110-WALL-KIT | SRX110 wall mount kit. Holds one unit. |
| SRX110-DESK-STAND | SRX110 desk stand. Holds one unit. |
| *See price list for country-specific power cord model numbers. | |
