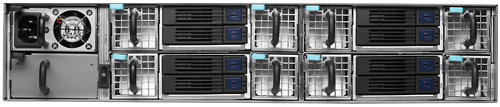

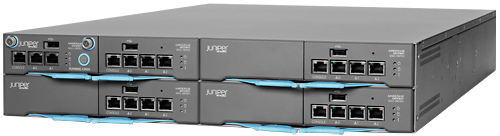

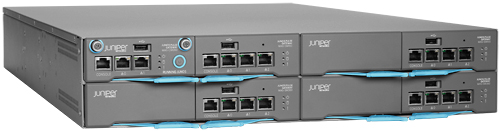

With its support for application service modules, enterprises have unlimited flexibility to mix and match the MAG6611 gateway configuration to meet their access and acceleration requirements.
The MAG6611 requires at least one service module to be ordered and installed (MAG-SM160 or MAG-SM360 for SSL VPN and/or NAC (UAC) functionality; MAG-SM161 or MAG-SM361 for application acceleration functionality).
The MAG6611 gateway supports up to 40,000 concurrent SSL VPN users, up to 60,000 concurrent NAC (UAC) users or 4,000 concurrent application acceleration users through its four available service module slots in a 2U high form factor.
Dimensions (W x H x D)
17.31 x 3.5 x 27.25 (43.97 x 8.89 x 69.22 cm)
17.31 x 3.5 x 27.25 (43.97 x 8.89 x 69.22 cm)
Weight
31 lb (14.1 kg)
31 lb (14.1 kg)
Rack mountable
Yes
Yes
A/C power supply
MAG-PS662 power supply: 100-240VAC, 10A 50-60Hz, 750W maximum
MAG-PS662 power supply: 100-240VAC, 10A 50-60Hz, 750W maximum
System battery
CR2032 3 V lithium coin cell
CR2032 3 V lithium coin cell
Efficiency
80% or greater at full load
80% or greater at full load
LEDs
On MAG Service Module: Power, HDD activity, hardware alert
On MAG Service Module: Power, HDD activity, hardware alert
Ports
On MAG Service Module:
On MAG Service Module:
- RJ45 serial (console port)
- 3 X RJ45 Ethernet 10/100/1000 (traffic)
- USB
Operating Temperature
- 41° through 104° F (5° through 40° C)
- Humidity: 8% - 90% non-condensing
Storage Temperature
- -40° through 158° F (-40° through 70° C)
- Humidity: 5% - 95% non-condensing
Safety certifications
EN 60950-1: 2006 (2nd Edition)
EN 60950-1: 2006 (2nd Edition)
Emissions certifications
EN 55022 (CISPR 22): 2006 +A1:2007; (ACMA) AS/NZS CISPR 22: 2006; FCC Part 15 Subpart B; Industry Canada ICES-003 Issue 4, February 2004; and VCCI V-3/2009.04 and V-4/2009.04 ETSI EN 300 386 V1.4.1 (2008-04) for a Class A Device
EN 55022 (CISPR 22): 2006 +A1:2007; (ACMA) AS/NZS CISPR 22: 2006; FCC Part 15 Subpart B; Industry Canada ICES-003 Issue 4, February 2004; and VCCI V-3/2009.04 and V-4/2009.04 ETSI EN 300 386 V1.4.1 (2008-04) for a Class A Device
| Model | Description |
|---|---|
| MAG-SM160 Service Module | Service module for MAG6610 and MAG6611 gateways that supports 1,000 SSL VPN or 5,000 NAC concurrent users. |
| MAG-SM360 Service Module | Service module for MAG6610 or MAG6611 gateways that supports 10,000 SSL VPN or 15,000 NAC concurrent users. |
| MAG-SM161 Service Module | Service module for MAG6610 and MAG6611 that supports application acceleration for up to 250 concurrent users. |
| MAG-SM361 Service Module | Service module for MAG6610 and MAG6611 that supports application acceleration for up to 1,000 concurrent users. |
| MAG-CM060 Chassis Management Module | Management module for MAG6610 or MAG6611. Only orderable with at least one service module and maximum of one management module can be ordered per chassis. |
| MAG-PS662 and MAG-PS663 Power Supply Modules | MAG-PS662 is a 750 W AC power supply module included with the MAG6611 gateway. An additional MAG-PS662 module may be installed in the MAG6611 gateway for redundancy capability. A spare MAG-PS663 750 W DC power supply module is available for the MAG6611. |
Interstate Batteries Recharges Data Center with Juniper Networks
Download
[
395 KB ]
395 KB ]
|
| Model Number | Description |
|---|---|
| Base System | |
| MAG6611 | MAG6611 Junos Pulse Gateway for SSL VPN, Application Acceleration and NAC |
| License Options | |
| ACCESSX600-ADD-10U | Add 10 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-25U | Add 25 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-50U | Add 50 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-100U | Add 100 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-250U | Add 250 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-500U | Add 500 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-1000U | Add 1000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-2000U | Add 2000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-2500U | Add 2500 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-5000U | Add 5000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-7500U | Add 7500 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-10K | Add 10000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-15K | Add 15000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-20K | Add 20000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-ADD-25K | Add 25000 simultaneous users to MAG6611 Junos Pulse Gateway |
| ACCESSX600-MTG-25U | Add 25 simultaneous Secure Meeting users for MAG Series Junos Pulse Gateways |
| ACCESSX600-MTG-50U | Add 50 simultaneous Secure Meeting users for MAG Series Junos Pulse Gateways |
| ACCESSX600-MTG-100U | Add 100 simultaneous Secure Meeting users for MAG Series Junos Pulse Gateways |
| ACCESSX600-MTG-250U | Add 250 simultaneous Secure Meeting users for MAG Series Junos Pulse Gateways |
| ACCEL-PULSE-25U | Junos Pulse Application Acceleration license for up to 25 concurrent users |
| ACCEL-PULSE-50U | Junos Pulse Application Acceleration license for up to 50 concurrent users |
| ACCEL-PULSE-100U | Junos Pulse Application Acceleration license for up to 100 concurrent users |
| ACCEL-PULSE-250U | Junos Pulse Application Acceleration license for up to 250 concurrent users |
| ACCEL-PULSE-500U | Junos Pulse Application Acceleration license for up to 500 concurrent users |
| ACCEL-PULSE-1KU | Junos Pulse Application Acceleration license for up to 1000 concurrent users |
| MAGX600-ICE | In Case of Emergency (ICE) license for MAG Series Junos Pulse Gateways |
| ACCESS-ICE-25PC | ICE 25%: Burst to 25% of installed license count on MAG Series Junos Pulse Gateway |
| MAG-SM160 | Service module for MAG6610 or MAG6611 that supports 1,000 SSL VPN or 5,000 NAC concurrent users |
| MAG-SM360 | Service module for MAG6610 or MAG6611 that supports 10,000 SSL VPN or 15,000 NAC concurrent users |
| MAG-SM161 | Service module for MAG6610 or MAG6611 that provides application acceleration for up to 250 concurrent users |
| MAG-SM361 | Service module for MAG6610 or MAG6611 that provides application acceleration for up to 1,000 concurrent users |
| MAG-CM060 | Management module for MAG6610 or MAG6611. Only orderable with at least one service module & maximum of one management module can be ordered per chassis |
| MAG-HD060 | Field replaceable spare HDD for SM360 service module |
| MAG-PS662 | Spare 750W AC power supply module for MAG6611 |
