The Juniper Networks MAG4611 Junos Pulse Gateway enables application acceleration for mobile, remote, branch or home office users in medium- to large-sized enterprises through a single, purpose-designed fixed hardware gateway.
In conjunction with Junos Pulse and the Junos Pulse Application Acceleration Service, this unified client and gateway solution addresses the needs of today's mobile and telecommuting employees, remote and branch offices, and partner and contractor personnel by delivering speedy, role-based application acceleration that increases remote user productivity and enhances the user experience by accelerating network and application access.

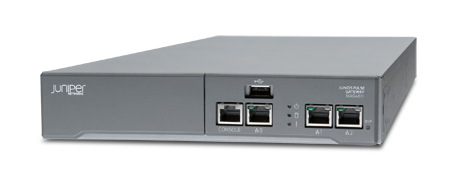

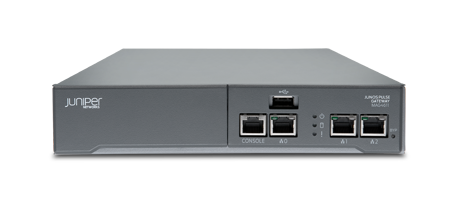

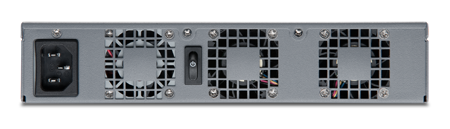

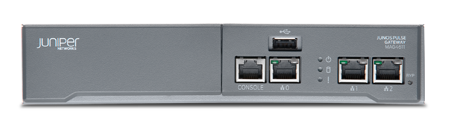

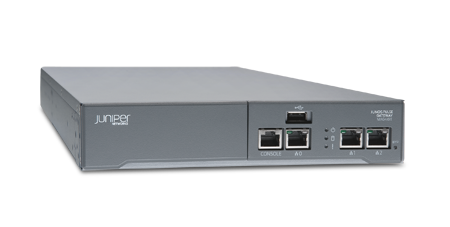

The MAG4611 Junos Pulse Gateway is a 1 U high, one-half rack width box which may be deployed side-by-side In a 1 U space. The MAG4611 supports application acceleration for up to 250 concurrent users.
8.63 x 1.75 x 21.50 in (21.92 x 4.45 x 54.61 cm)
11.5 lb (5.2 kg)
Yes
100-240 VAC, 1A 50-60 Hz, 70 W maximum
CR2032 3 V lithium coin cell
80% or greater at full load
Power, HDD activity, hardware alert
- RJ45 serial (console port)
- Three RJ45 Ethernet 10/100/1000 (traffic)
- USB
- 41° through 104° F (5° through 40° C)
- Humidity: 8% - 90% non-condensing
- Altitude: 10,000 ft maximum
- -40° through 158° F (-40° through 70° C)
- Humidity: 5% - 95% non-condensing
- Altitude: 40,000 ft maximum
EN 60950-1: 2006 (2nd Edition)
EN 55022 (CISPR 22): 2006 +A1:2007; (ACMA) AS/NZS CISPR 22: 2006; FCC Part 15 Subpart B; Industry Canada ICES-003 Issue 4, February 2004; and VCCI V-3/2009.04 and V-4/2009.04 ETSI EN 300 386 V1.4.1 (2008-04) for a Class A Device
747 KB ]
|
| Model Number | Description |
|---|---|
| MAG4611 Base System | |
| MAG4611 | MAG4611 fixed configuration Junos Pulse Gateway for application acceleration |
| MAG4611 Application Acceleration Licenses | |
| ACCEL-PULSE-25U | Junos Pulse Application Acceleration license for up to 25 concurrent users |
| ACCEL-PULSE-50U | Junos Pulse Application Acceleration license for up to 50 concurrent users |
| ACCEL-PULSE-100U | Junos Pulse Application Acceleration license for up to 100 concurrent users |
| ACCEL-PULSE-250U | Junos Pulse Application Acceleration license for up to 250 concurrent users |
