TX Matrix

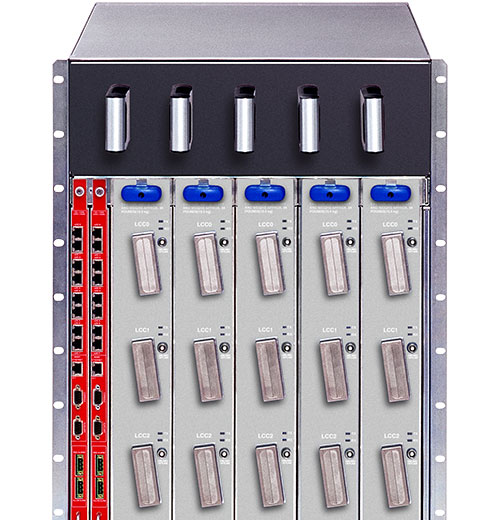

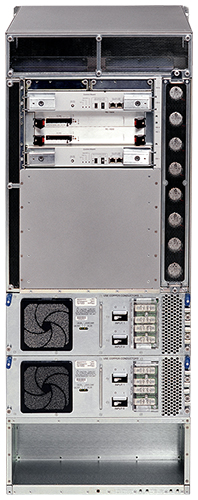

Interconnects up to four T640 chassis into a single routing entity. It has 32 slots and a sustainable throughput rate of 2.5 Tbps (up to 3 billion pps).

image gallery image gallery image gallery image gallery
T Series
T320

T640

T1600

T4000

TX Matrix

TX Matrix Plus



Need Help?

  • Learn How to Buy
  • Call Us
  • Email Us
Print
  • Specifications
  • Modules
  • Literature
  • Related Information
  • Ordering
Dimensions
  • 17.43 x 44.5 x 30 in
  • 44.27x 113 x 76.2 cm
Maximum Weight
  • 480 lbs
  • 218 kg
Mounting
Front or center
DC Power Supply
  • Power System Rating (Agency Label): 4,560 W (95 A @ -48 VDC)
  • Power consumption (theoretical aggregate): 2,976 W (62 A @ -48 VDC)
SIB
  • Standard SIB: N/A
  • Matrix-Enabled SIB: Yes

4-port 10 GE PIC for T Series Core Routers

Download [ PDF Document  324 KB ]

4-Port OC-192 PIC

Download [ PDF Document  356 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) Optical Transport Network PIC

Download [ PDF Document  427 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) PIC

Download [ PDF Document  445 KB ]

Enhanced IQ PICs

Download [ PDF Document  766 KB ]

Enhanced IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  733 KB ]

High-Speed SONET/SDH PICs

Download [ PDF Document  426 KB ]

IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  974 KB ]

Select Type

  • Backgrounders
  • Datasheets
  • Datasheets - Modules
  • White Papers


Juniper Networks Innovates to Connect Everyone to the Global Community and Enable a Sustainable Energy Future

Download [ PDF Document  183 KB ]

T Series Core Routers

Download [ PDF Document  1.51 MB ]

JCS1200 Control System

Download [ PDF Document  769 KB ]

Router Services Portfolio and Multiservices Cards

Download [ PDF Document  342 KB ]

4-port 10 GE PIC for T Series Core Routers

Download [ PDF Document  324 KB ]

4-Port OC-192 PIC

Download [ PDF Document  356 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) Optical Transport Network PIC

Download [ PDF Document  427 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) PIC

Download [ PDF Document  445 KB ]

Enhanced IQ PICs

Download [ PDF Document  766 KB ]

Enhanced IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  733 KB ]

High-Speed SONET/SDH PICs

Download [ PDF Document  426 KB ]

IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  974 KB ]

Unlocking Video Over the Internet on MX Series Routers

Download [ PDF Document  670 KB ]

Tools and Strategies for Coping with IPv4 Address Depletion

Download [ PDF Document  1.01 MB ]

Ensuring Rapid Restoration in Junos OS-Based Networks

Download [ PDF Document  910 KB ]

Consolidating Service Provider Points of Presence

Download [ PDF Document  622 KB ]

Improving Network Efficiency, Reliability, and Operations with IPoDWDM

Download [ PDF Document  1.20 MB ]

Unified ISSU: A Complete Approach to In-Service Software Upgrades

Download [ PDF Document  303 KB ]

Continuous Systems, Nonstop Operations with Junos Operating System

Download [ PDF Document  583 KB ]

Multi-Topology Routing

Download [ PDF Document  456 KB ]

Optimizing Media-Rich Content Delivery with Point-to-Multipoint Label Switched Paths

Download [ PDF Document  246 KB ]

T Series Core Routers Architecture Overview

Download [ PDF Document  711 KB ]

Energy Efficiency for the Network Equipment: Two Steps Beyond Greenwashing

Download [ PDF Document  164 KB ]

Network Operating System Evolution

Download [ PDF Document  417 KB ]

Efficient Scaling for Multiservice Networks: Flexible Filtering and Industry-Leading Forwarding Performance

Download [ PDF Document  374 KB ]

Juniper Networks High-Performance Networking for Branch Offices of Financial Services Institutions

Download [ PDF Document  251 KB ]

Best Practices for Video Transit on An MPLS Backbone

Download [ PDF Document  388 KB ]

ISSU: A Planned Upgrade Tool

Download [ PDF Document  224 KB ]

Technical Support:

  • TX Matrix Technical Support
  • TX Matrix Technical Documentation

Certification:

  • M-series & T-series Certification Track

  Ready to order? Find a Juniper partner.



Item Configuration TX Matrix
Base Unit Switch Fabric Chassis TXBASE-DC
Routing Engine Primary RE-1600-2048-BB orRE- A-2000-4096-BB
Redundant RE-1600-2048-R or RE- A-2000-4096-R
Control board Primary CBTX-BB
Redundant CB-TX-R
JUNOS Software USA
Worldwide
JUNOS
JUNOS-WW
SIB 5 required per TX Matrix SIB-4-TX
FPC FPC Type 1
FPC Type 2
FPC Type 3
FPC Type 4
N/A
Matrix cable arrays N/A CBL-TX-SIB-XX available in 4, 5, 6, 10, 12 meter lengths
CBL-TX-SIB-XX available in 15 M to 100 M lengths (in increments of 5 meters)
