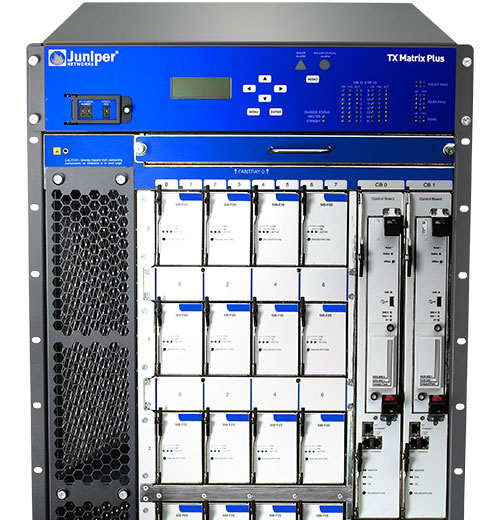

TX Matrix Plus

Interconnects up to four T4000 or 8 T1600 routers

Up to four T4000, eight T1600 routers, or combinations of both, can be connected using the TX Matrix Plus switch-fabric chassis.

    Product Media Viewer

    Overview

    The TX Matrix Plus is the central switch fabric that interconnects up to four 4 T4000s, 8 T1600s, or a hybrid configuration of T4000s and T1600s into a single routing entity with 32 to 64 slots and a sustainable throughput rate of up to 22 Tbps.

    It scales as more ports are added when routers and slots are connected to the center stage fabric over its optical interfaces. The TX Matrix Plus expands network capacity with non-blocking bandwidth, increasing equipment lifespan and reducing CapEx, and enabling operators to seamlessly grow networks amidst explosive traffic growth.

    Designed with no single point of failure, and utilizing the same system design and robust Junos OS as Juniper routing platforms, TX Matrix Plus is designed from the ground up to achieve the highest levels of system availability.

    Features

    • Operates multiple T Series routers as one router.
    • Creates simplified, less expensive routing operation.
    • Scales bandwidth seamlessly with line cards.
    • Seamlessly add more T Series chassis and ports.

    Specs

    Dimensions (W x H x D)21.4 x 52 x 36.2 in
    54.4 x 132 x 91.9 cm
    Maximum Weight900 lbs
    408 kg
    MountingFront or center
    SIBStandard SIB: N/A
    Matrix-Enabled SIB: Yes
    Power System Rating (Agency Label)12,750 Watts (preliminary) (266 A @ –48 VDC)
    Power Consumption (Theoretical Aggregate)12,750 Watts (preliminary) (266 A @ –48 VDC)
    View full spec sheet

    Product Specs

    TX Matrix Plus
    Dimensions (W x H x D)21.4 x 52 x 36.2 in
    54.4 x 132 x 91.9 cm
    Maximum Weight900 lbs
    408 kg
    MountingFront or center
    SIBStandard SIB: N/A
    Matrix-Enabled SIB: Yes
    Power System Rating (Agency Label)12,750 Watts (preliminary) (266 A @ –48 VDC)
    Power Consumption (Theoretical Aggregate)12,750 Watts (preliminary) (266 A @ –48 VDC)
