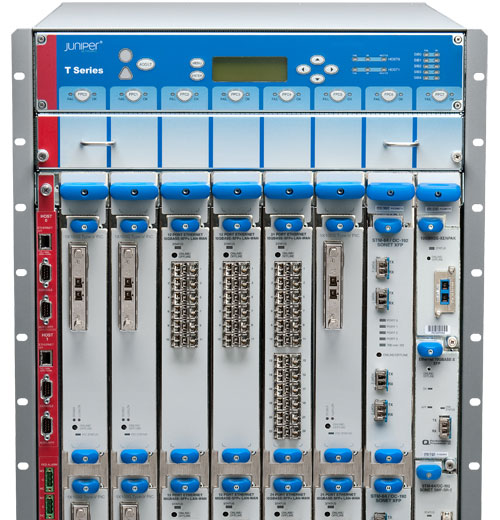

T4000 Core Router
The T4000 is a true multiservice core system that delivers a reliable, high-performance, and flexible core backbone architecture to carry a wide breadth of services over a common IP/MPLS infrastructure. With four terabits of line rate throughput in a half rack chassis, the T4000 offers double the slot capacity of the nearest competitor at a fraction of the power consumption.
The Juniper Networks T4000 Core Router is the next generation of T Series routers, extending Juniper’s proven history of innovation and investment protection. The T4000 system more than doubles the per-slot capacity of existing T1600 systems from 100 to 240 Gbps—and with only 25% increase in power. A fully loaded T4000 system can support up to 208 ports of 10GbE, or 16 ports of 100GbE interfaces, making it the densest line-rate IP/MPLS routing system. The T4000 is a true multiservice core system that is designed to deliver a reliable, high-performance, and flexible architecture to carry a wide breadth of services over a common IP/MPLS infrastructure.
With 3.84 Tbps of line rate throughput in a half rack chassis, the T4000 offers double the slot capacity of the nearest competitor. In addition, all existing T640 and T1600 systems can be upgraded in-service to T4000 systems, offering ultimate investment protection to the existing T Series installed base.
| Feature | Benefit |
|---|---|
| Densest Multi-terabit capacity and multichassis scalability | Explosive growth in social networking, video and many other applications are driving traffic growth exponentially. The T Series scale and density allows service providers to increase seamlessly as the needs grow. |
| High availability systems | High availability (HA) and continuous operation are critical in core routing, where loss of a single routing node can remove service for a wide geographical area. Offering full ISSU support, the T Series is the most reliable system powering core networks today. Key benefits include higher network availability, better network stability, easier operations, and less operational risks. |
| In Service Hardware Upgrade | Any T Series chassis can be upgraded to a future generation system while in full service. One of the most popular innovations from Juniper, this feature offers operators unprecedented investment protection to future technology. |
| Widest range of interface support | With the highest densities in Ethernet and SONET/SDH interfaces, the T Series not only powers some of the largest Ethernet and SONET/SDH cores but is also key to the operators in the transition phase to Ethernet. |
- 17.43 x 37.45 x 31 in
- 44.27 x 95.12 x 78.74 cm
- 606 lbs
- 274.88 kg
Front or center
Power System Rating (Agency Label): 11,500 W
N/A
Monitoring Services III PIC
499 KB ]
100-Gigabit Ethernet PIC
396 KB ]
Optic Modules
164 KB ]
10-Port 10GbE Oversubscribed Ethernet PIC for T Series Core Routers
471 KB ]
4-port 10 GE PIC for T Series Core Routers
324 KB ]
4-Port OC-192 PIC
356 KB ]
10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) Optical Transport Network PIC
427 KB ]
10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) PIC
445 KB ]
Enhanced IQ PICs
766 KB ]
Enhanced IQ2 Ethernet Services Engine (ESE) PIC
733 KB ]
High-Speed SONET/SDH PICs
426 KB ]
IQ2 Ethernet Services Engine (ESE) PIC
974 KB ]
M Series and T Series PIC/FPC Compatibility Matrix
167 KB ]
Multi-Rate SONET/SDH PICs
688 KB ]
