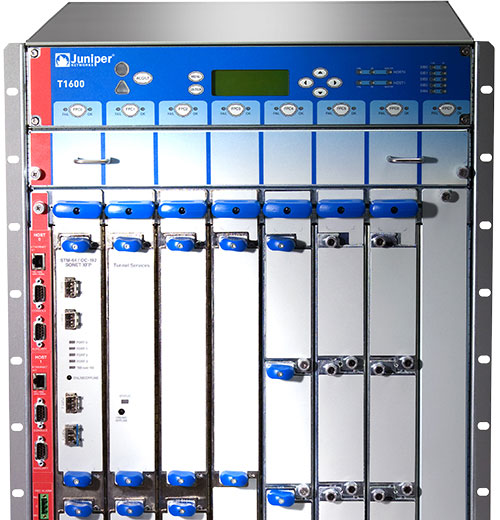

T1600 Core Router

The multichassis-capable T1600 Core Router offers highly scalable, high-performance core routing at a fraction of the size of competitive offerings.

image gallery image gallery image gallery image gallery image gallery
T Series
T320

T640

T1600

T4000

TX Matrix

TX Matrix Plus



Need Help?

  • Learn How to Buy
  • Call Us
  • Email Us
Print
  • Specifications
  • Modules
  • Literature
  • Related Information
  • Ordering
Dimensions
  • 17.43 x 37.45 x 31 in
  • 44.27 x 95.12 x 78.74 cm
Maximum Weight
  • 606 lbs
  • 274.88 kg
Mounting
Front or center
DC Power Supply
  • Power System Rating (Agency Label): 8,352 Watts (174 A at -48 VDC)
  • Delta: 28.3 A @ 240 VAC maximum (lineto-line)
  • Delta: 34 A @ 200 VAC minimum (line-to-line)
  • Wye : 16.4 A @ 415 VAC maximum (line-to-line)
  • Wye: 20 A @ 346 VAC minimum (line-to-line)
  • Power consumption (theoretical aggregate): 7,008 Watts (146 A at -48 VDC)
SIB
  • Standard SIB: Yes
  • Matrix-Enabled SIB: Yes

Monitoring Services III PIC

Download [ PDF Document  499 KB ]

100-Gigabit Ethernet PIC

Download [ PDF Document  396 KB ]

Optic Modules

Download [ PDF Document  164 KB ]

10-Port 10GbE Oversubscribed Ethernet PIC for T Series Core Routers

Download [ PDF Document  471 KB ]

4-port 10 GE PIC for T Series Core Routers

Download [ PDF Document  324 KB ]

4-Port OC-192 PIC

Download [ PDF Document  356 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) Optical Transport Network PIC

Download [ PDF Document  427 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) PIC

Download [ PDF Document  445 KB ]

Enhanced IQ PICs

Download [ PDF Document  766 KB ]

Enhanced IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  733 KB ]

High-Speed SONET/SDH PICs

Download [ PDF Document  426 KB ]

IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  974 KB ]

M Series and T Series PIC/FPC Compatibility Matrix

Download [ PDF Document  167 KB ]

Multi-Rate SONET/SDH PICs

Download [ PDF Document  688 KB ]

Select Type

  • Application Notes
  • Backgrounders
  • Case Studies
  • Datasheets
  • Datasheets - Modules
  • Design Guides
  • Fact Sheets
  • Implementation Guides
  • White Papers


Benefits of Intelligent Oversubscription in Next-Generation Networks

Download [ PDF Document  497 KB ]

Real-Time Performance Monitoring on Juniper Networks Devices

Download [ PDF Document  2.29 MB ]

Juniper Networks Innovates to Connect Everyone to the Global Community and Enable a Sustainable Energy Future

Download [ PDF Document  183 KB ]

Janet, the UK’s Research and Education Network, Scales to 100GbE

Download [ PDF Document  225 KB ]

T Series Core Routers

Download [ PDF Document  1.51 MB ]

JCS1200 Control System

Download [ PDF Document  769 KB ]

Router Services Portfolio and Multiservices Cards

Download [ PDF Document  342 KB ]

Monitoring Services III PIC

Download [ PDF Document  499 KB ]

100-Gigabit Ethernet PIC

Download [ PDF Document  396 KB ]

Optic Modules

Download [ PDF Document  164 KB ]

10-Port 10GbE Oversubscribed Ethernet PIC for T Series Core Routers

Download [ PDF Document  471 KB ]

4-port 10 GE PIC for T Series Core Routers

Download [ PDF Document  324 KB ]

4-Port OC-192 PIC

Download [ PDF Document  356 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) Optical Transport Network PIC

Download [ PDF Document  427 KB ]

10-Gigabit Ethernet Dense Wavelength Division Multiplexing (DWDM) PIC

Download [ PDF Document  445 KB ]

Enhanced IQ PICs

Download [ PDF Document  766 KB ]

Enhanced IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  733 KB ]

High-Speed SONET/SDH PICs

Download [ PDF Document  426 KB ]

IQ2 Ethernet Services Engine (ESE) PIC

Download [ PDF Document  974 KB ]

M Series and T Series PIC/FPC Compatibility Matrix

Download [ PDF Document  167 KB ]

Multi-Rate SONET/SDH PICs

Download [ PDF Document  688 KB ]

Network Scaling with BGP Labeled Unicast

Download [ PDF Document  239 KB ]

T4000 Core Router

Download [ PDF Document  332 KB ]

Dual-Stack Lite Implementation Guide

Download [ PDF Document  1.61 MB ]

6rd Configuration Guide

Download [ PDF Document  454 KB ]

Carrier Grade NAT Implementation Guide

Download [ PDF Document  413 KB ]

Unlocking Video Over the Internet on MX Series Routers

Download [ PDF Document  670 KB ]

Tools and Strategies for Coping with IPv4 Address Depletion

Download [ PDF Document  1.01 MB ]

Ensuring Rapid Restoration in Junos OS-Based Networks

Download [ PDF Document  910 KB ]

Consolidating Service Provider Points of Presence

Download [ PDF Document  622 KB ]

Improving Network Efficiency, Reliability, and Operations with IPoDWDM

Download [ PDF Document  1.20 MB ]

Unified ISSU: A Complete Approach to In-Service Software Upgrades

Download [ PDF Document  303 KB ]

Continuous Systems, Nonstop Operations with Junos Operating System

Download [ PDF Document  583 KB ]

Multi-Topology Routing

Download [ PDF Document  456 KB ]

Optimizing Media-Rich Content Delivery with Point-to-Multipoint Label Switched Paths

Download [ PDF Document  246 KB ]

T Series Core Routers Architecture Overview

Download [ PDF Document  711 KB ]

Energy Efficiency for the Network Equipment: Two Steps Beyond Greenwashing

Download [ PDF Document  164 KB ]

Network Operating System Evolution

Download [ PDF Document  417 KB ]

Efficient Scaling for Multiservice Networks: Flexible Filtering and Industry-Leading Forwarding Performance

Download [ PDF Document  374 KB ]

Juniper Networks High-Performance Networking for Branch Offices of Financial Services Institutions

Download [ PDF Document  251 KB ]

Best Practices for Video Transit on An MPLS Backbone

Download [ PDF Document  388 KB ]

ISSU: A Planned Upgrade Tool

Download [ PDF Document  224 KB ]

Technical Support:

  • T1600 Technical Support
  • T1600 Technical Documentation

Certification:

  • M-series & T-series Certification Track

  Ready to order? Find a Juniper partner.



Item Configuration T1600
Base Unit 8 slots supporting 32 PICs T1600BASE-DC
Routing Engine Primary RE-1600-2048-BB or RE- A-2000-4096-BB
Redundant RE-1600-2048-R or RE- A-2000-4096-R
Control board Primary CB-T-BB
Redundant CB-T-R
JUNOS Software USA
Worldwide
JUNOS
JUNOS-WW
SIB 5 required per T1600 For single-chassis operations use: SIB-I-T1600
For multi-chassis operations use: SIB-TXP-T1600
FPC FPC Type 1
FPC Type 2
FPC Type 3
FPC Type 4
T640-FPC1-E2
T640-FPC2-E2
T640-FPC3-E2
T640-FPC3-ES
T640-FPC4-ES
T1600-FPC4-ES
Matrix cable arrays N/A N/A
