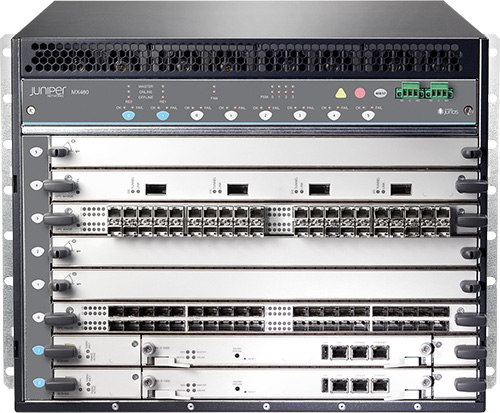

MX480 3D Universal Edge Router
The MX480 3D Universal Edge Router provides a dense, highly redundant platform primarily targeted for dense dedicated access aggregation and provider edge services in medium-size and large Points of Presence (POPs).
- 14 x 17.5 x 23.5 in
35.6 x 44.5 x 59.7 cm
- 180 lbs / 81.65 kg
- Front or center
- AC/DC (Fully loaded): -40 to -60V DC; 100-240V AC
- Maximum Power Draw: 3,500 watts
- 32 to 104 degrees F/ 0 to 40 degrees C
- 5 to 90 percent noncondensing humidity
- No performance degradation to 13,000 ft/4,000m
DPCs
Dense Port Concentrators (DPCs) provide multiple physical interfaces and Packet Forwarding Engines (PFE) on a single board that installs in a slot in the Juniper Networks MX Series Ethernet Services Routers. A DPC receives incoming packets from the network and sends outgoing packets to the network. The PFEs are equipped with purpose-built ASICs that perform packet processing and forwarding. Each PFE consists of one I-chip for Layer 3 processing and one Layer 2 network processor.
DPCE-X
Optimized for Ethernet switching, the DCPE-X extends JUNOS® Software to include traditional Layer 2 switching features, such as Spanning Tree, as well as more recent Ethernet standards developments including Operation, Administration, and Maintenance (OAM). The MX Series combined with the DPCE-X Layer 2 switching cards provide a wide range of MPLS and Ethernet functionality for cost-effective Layer 2 aggregation.
DPCE-R
The DPCE-R provides the same Layer 2 switching and MPLS features offered on the DPCE-X card. In addition it provides greater routing scalability (1 million routes as opposed to the DPCE-X's 32 K) and packet processing capabilities.
MX-FPC
MX-FPC modules accept up to two PICs commonly used with the M Series and T Series routers. These modules allow the MX Series to support non-Ethernet interfaces, and the PIC portability among M Series, T Series, and MX Series routers provides common sparing and investment protection.
PIC types supported:
| MX-FPC2 | MX-FPC3 |
|---|---|
| PB-1OC48-SON-B-SFP | PC-1OC192-SON-VSR |
| PB-4OC3-1OC12-SON2-SFP | PC-1OC192-SON-XFP |
| PB-4OC3-1OC12-SON-SFP | PC-4OC48-SON-SFP |
| PB-4CHOC12-STM4-IQE-SFP | |
| PB-1CHOC48-STM16-IQE-SFP |
MS-DPC
The Multiservices DPC significantly expands the flexibility of the MX Series by enabling a broad range of services and applications in a single DPC form factor that can also serve as an integral part of a security solution. Session border control (SBC) functions, intrusion detection and protection (IDP), deep packet inspection (DPI), stateful firewall, network address translation (NAT), flow monitoring, and anomaly detection can be layered simultaneously on each MS-DPC, creating a rich, scalable services plane.
Demystifying H-VPLS
Download
[
383 KB ]
| Component | Description | Model Number | ||
|---|---|---|---|---|
| MX-240 | MX-480 | MX-960 | ||
| Base Unit | DC chassis | MX240BASE-DC | MX480BASE-DC | MX960BASE-DC |
| AC chassis | MX240BASE-AC | MX480BASE-AC | MX960BASE-AC | |
| DPC | DPCE-R-40GE-SFP DPCE-R-4XGE-XFP DPCE-X-40GE-SFP DPCE-X-4XGE-XFP DPCE-R-Q-40GE-SFP DPCE-R-Q-4XGE-XFP DPCE-X-Q-40GE-SFP DPCE-X-Q-4XGE-XFP DPCE-R-Q-20GE-SFP DPCE-R-2XGE-XFP DPCE-R-40GE-TX DPCE-X-40GE-TX MX-FPC2 MX-FPC3 MS-DPC |
40X1 GE L2/L3 capable 4X10 GE L2/L3 capable 40X1 GE L2+ capable 4X10 GE L2+ capable 40x1 GE L2/L3 capable board with enhanced queuing 4x10 GE L2/L3 capable board with enhanced queuing 40x1 GE L2+ capable board with enhanced queuing 4x10 GE L2+ capable board with enhanced queuing 20x1 GE L2/L3 capable with enhanced queuing 2x10 GE L2/L3 capable 40x10/100/1000 Ethernet L2/L3 capable with RJ45 40x10/100/1000 Ethernet L2+ capable with RJ45 DPC with 2 slots for type 2 PICs DPC with 2 slots for type 3 PICs IP services line card for MX Series |
||
| Routing Engine | RE-S-1300-2048-BB RE-S-2000-4096-UPG-BB RE-S-1300-2048-R RE-S-2000-4096-R |
1.3 GHz CPU and 2 GB memory, Base Bundle 2 GHz CPU and 4 GB memory, Base Bundle 1.3 GHz CPU and 2 GB memory, Redundant 2 GHz CPU and 4 GB memory, Redundant |
||
