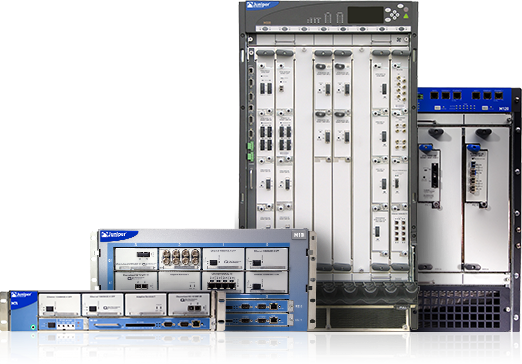

M Series

Multiservice Edge Routers

IP/MPLS combined with reliable, stable, secure, and rich services enable service providers and enterprises to generate new revenue and consolidate networks.

How to Buy

Compare All M Series Products

Product Comparison

M7iM10iM120M320
Aggregate Half-Duplex Throughput10 Gbps16 Gbps120 Gbps320 Gbps
FPC Slots and Full Duplex Throughput per Slot1 built-in, 4 Gbps additional 1 Gbps for FIC2 built-in, 4 Gbps4 FPC slots, 10 Gbps8 FPC slots, 20 Gbps
PICs per Chassis4, plus 2 additional fixed FE, or 1 fixed GE ports81632
Chassis per Rack24942
RedundancyNoYesYesYes
Dimensions (W x H x D)3.5 x 17.5 x 18 in
8.9 x 44.5 x 45.7 cm
8.75 x 17.5 x 18 in
22.2 x 44.5 x 45.7 cm
20.75 x 17.5 x 25.7 in
52.7 x 44.5 x 65.3 cm
34.8 x 17.4 x 25.7 in
88.4 x 44.3 x 65.1 cm
Maximum Weight38.2 lbs / 17.3 Kg79 lbs / 36 Kg230 lbs/ 104.3 kg439 / 199.6 kg
MountingFront or centerFront or centerFront or centerFront or center
Power OptionsDC Input Power (Fully Loaded): 10 A at -48 VDC; 378 watts
No. of power supplies required (non-redundant/redundant): 1/2
AC System Input Power (Fully Loaded): 4 to 2 A; 100 to 240 VAC; 47 to 63 Hz; 400 watts
No. of power supplies required (non-redundant/redundant): 1/2
DC Input Power (Fully Loaded): 12 A at -48 VDC 576 watts
No. of power supplies required (non-redundant/redundant): 2/4
AC System Input Power (Fully Loaded): 8 to 4 A; 100 to 240 VAC; 47 to 63 Hz; 800 watts
No. of power supplies required (non-redundant/redundant): 2/3
DC Input Power (Fully Loaded): 45 A at -48 VDC; 2,150 watts
No. of power supplies required (non-redundant/redundant): 1/2
AC System Input Power (Fully Loaded): 28 to 14 A; 100 to 240 VAC; 47 to 63 Hz; 2,200 watts
No. of power supplies required (non-redundant/redundant): 1/2
DC Input Power (Fully Loaded): 65 A at -48 VDC; 3,150 watts
No. of power supplies required (non-redundant/redundant): 2/4
AC System Input Power (Fully Loaded): 17 A to 14 A; 200 to 240 VAC; 47 to 63 Hz; 3,500 watts
No. of power supplies required (non-redundant/redundant): 3/4
  • M7i

    M7i Multiservice Edge Router is compact with 10 Gbps throughput.

  • M10i

    M10i Multiservice Edge Router is compact and fully redundant with 16 Gbps throughput.

  • M120

    M120 Multiservice Edge Router is highly redundant with 120 Gbps throughput.

  • M320

    M320 Multiservice Edge Router is a 320 Gbps high-performance routing platform.

Flexible deployment options

Can be deployed in small and medium core, multiservice edge, collapsed point of presence (POP) routing, peering, route reflector, and campus or WAN gateway applications.

  • Enables network consolidation

    Large networks can use M Series IP/MPLS services at scale to reduce costs through network consolidation while generating new revenues.

  • Models from 10 to 320 Gbps throughput

    Models span from 10 to 320 Gbps throughput and support high-density aggregation of access types, including ATM, Frame Relay, Ethernet, SONET/SDH, and time-division multiplexing (TDM).

  • Separate control, forwarding, and services planes

    Separation of control plane, forwarding plane, and services plane allows a single M Series router to support multiple services over any type of access connection, minimizing operational and capital costs.
