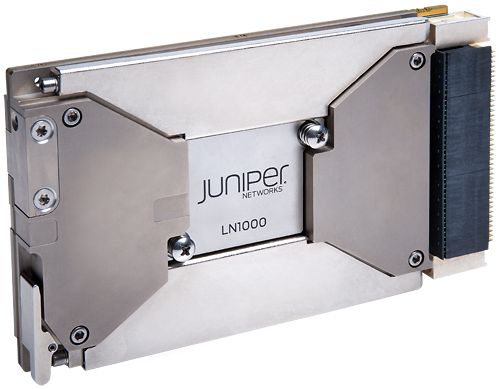

LN1000
An edge access router that delivers a high-performance routing firewall and intrusion detection service (IDS).
Maximum Performance and Capacity
- Firewall + routing pps (64 byte): 200 Kpps
- AES256+SHA-1/3DES+SHA-1 VPN performance: 250 Mbps
- IPsec VPN tunnels: 1,000
- IPS (intrusion prevention system): 250 Mbps
- Connections per second: 9,000
- Maximum concurrent sessions: 128,000
- Maximum security policies: 4,096
- Maximum users supported: Unrestricted
Network Connectivity
- Fixed I/O 8 x 1 Gbps
Routing
- BGP instances 20
- BGP peers 32
- BGP routes 64K
- OSPF instances 20
- OSPF routes 64K
- RIP v1 / v2 instances 20
- RIP v2 routes 64K
- Static routes 64K
IPsec VPN
- Concurrent VPN tunnels 1,000
- Tunnel interfaces 128
Virtualization
- Maximum number of security zones 32
- Maximum number of VLANs 512
Physical and Mechanical Dimensions (W x H x D)
- Conforms to VITA 48.2 3 U Conduction Cooled Format (0.85 x 4 x 6.3 in; 21.6 x 100 x 160 mm)
Connections
- VITA 46.0 specified connections:
- P0-56 pin Utility Connector; P1, P2 -112 pin signaling connectors
- RJ45 RS232 front console connector Electrical
Power
- < 35 W
Input Voltage
- +3.3 V
- +5 V
- +3 V Aux Thermal
Operating
- VITA ECC4 (-40° C to 85° C)
Non-Operating
- Vita ECC3 -50° C to 100° C
Shock
- VITA 47 OS2; 40 g, 11 ms
Vibration
- VITA 47 V3
- 5 Hz to 100 Hz PSD increasing 3dB/octave
- 100 Hz to 1000 Hz PSD = 0.1g2/Hz
- 1000 Hz to 2000 Hz PSD decreasing at 6dB/octave
Humidity
- VITA 47: up to 95% RH non-condensing
Corrosion
- VITA 47; ASTM G85, Annex A4 (Salt, SO2 spray)
Altitude
- VITA 47: 1,500 ft below sea level to 60,000 ft above sea level
ESD
- VITA 47: EN61000-4-2; up to 15 KV
Transportation
- MIL-STD-810F for air, sea, road, and rail
LN1000 Mobile Secure Router
