- 16.7 x 3.5 x 16.2 in (42.4 x 8.9 x 41.2 cm)
- AC and DC options
2-way dual core (1.8 GHz per core)
80 GB RAID 1 mirror (2 drives)
200,000 concurrent sessions

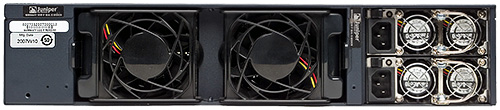

- Dual redundant hot-swappable power supplies
- Externally accessible removable hot-swappable hard drives
- Redundant RAID mirrored hard drive configuration
- GigabitEthernet port redundancy
- Inter C-series hot standby
2 Gigabit Ethernet ports, extensible to 4 (option)
- RS232 DB9 management port
- LAN management port
- USB port
- IPMI management module
- CAN/CSA-C22.2 No.60950-00/UL 60950 Third Edition
- EN 60950 Safety of Information Technology Equipment
- EN 60825-1 Safety of Laser Products - Part 1
- EN 60825-2 Safety of Laser Products - Part 2
Normal: 0 to 40° C
Short duration: –5 to 55° C EMC
GBE Modules
Generic interfaces—Each model has two generic ports (ETH2 and ETH3) that can be used with standard connectors, such as small form-factor pluggable transceivers (SFPs), to create fiber-optic or Gigabit Ethernet connections and provide additional LAN connectivity. The following SFPs are available:
- 1000Base-SX—Duplex LC connector, multimode, rated for 500 m over 10-micron core cable, 850-nm laser transmitter
- 1000Base-LX—Duplex LC connector, single-mode, rated for 10 m over 10-micron core cable, 1310-nm laser transmitter
- 1000Base-T—RJ-45 connector, rated for up to 100 m on CAT5 cable
IPMI Management Module
Intelligent Platform Management Interface (IPMI) — a message-based hardware management interface — offers remote monitoring, management, and recovery capabilities, regardless of the status of the server. It includes interfaces common to computer hardware and firmware that can be used to monitor system health and manage the system.
Because IPMI operates independently of the operating system, a system can be managed remotely even without an OS or system management software, and even if the monitored system is not powered on.
IPMI version 1.5 and later can send alerts via a direct serial connection, a LAN, or a serial over LAN connection to a remote client. Using the same connections requests can be issued from a remote console, including querying the controller status and reviewing hardware logs.
SRC Series Session and Resource Control Modules
Download
[
1.74 MB ]
Technical Support:
Forums:
| Model Number | Description |
|---|---|
| SRC-C2KPE-BNC | C2000 bundle includes base system with dual power supplies, SRC-PE on hard drive, pen drive, software license for 50,000 service sessions and accessory kit |
| SRC-C2KPE-SYS | C2000 base system with dual power supplies, SRC-PE on hard drive, accessory kit and quick start guide |
| SRC-PE10-SW | SRC-Policy Engine software release 1.0 on PEN Drive |
| SRC-PE20-SW | SRC-Policy Engine software release 2.0 on PEN Drive |
| SRC-PE30-SW | SRC-Policy Engine software release 3.0 on PEN Drive |
| SRC-PE500K-LIC | 500,000 Service Session License for SRC Policy Engine |
| SRC-PE1000K-LIC | 1,000,000 Service Session License for SRC Policy Engine |
| SRC-PE200K-LIC | 200,000 Service Session License for SRC Policy Engine |
| SRC-PE100K-LIC | 100,000 Service Session License for SRC Policy Engine |
| SRC-PE50K-LIC | 50,000 Service Session License for SRC Policy Engine |
| SRC-C2KPEACP-LIC | Feature license for admission control plug-in, one required per C2000 SRC policy engine |
| SRC-C2KPEHA-LIC | Feature license for HA on policy engine on C2000, one required per standby C2000 PE controller |
| SRC-CXKDG-LIC | SRC DIAMETER (A-RACF Rq Interface) Gateway software license for use on C Series. One required per C Series running DIAMETER Gateway software |
| SRC-CXKSG-LIC | SRC DIAMETER SOAP Gateway software license for use on C Series platform. One required per C Series running SOAP Gateway software |
