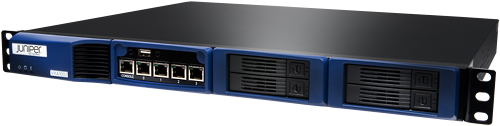

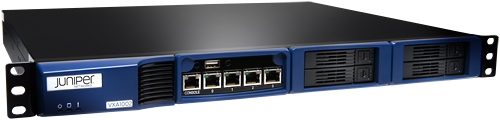

VXA1002
The VXA1002 is a rack-mountable appliance that hosts Junos Content Encore and delivers up to 2Gbps of content delivery performance.
The VXA1002 is a member of Juniper’s VXA Series Content Engines. These are purpose-built x86 appliances designed to maximize the performance of Junos Content Encore.
With technology based on Juniper’s rich heritage in carrier development and manufacturing, the VXA1002 delivers the quality and reliability customers expect from Juniper hardware. The VXA1002 simplifies the deployment and support of Junos Content by allowing customers to purchase, maintain and deploy a complete, prepackaged content delivery and caching solution with one trusted supplier.
The VXA1002 is a 1RU form-factor appliance that features 2Gbps of performance, and is delivered pre-configured with 2TB of disk storage.
2 Gbps*
4x1Gbps
8 GB
2 TB
10,000***
1 U
(W x H x D) 17.72 x 1.75 x 17.26 in
(45 x 4.45 x 43.84 cm)
SATA/SSD
Quad Core
AC
* Actual performance may vary based on factors such as deployment scenarios, object mix, and cache hit ratio.
*** 128k active client sessions, 128k inactive client sessions, 128k active origin sessions, 128k inactive origin sessions.
- 300 GB SAS HDD FRU
- 500 GB SAS HDD FRU
- 500 GB SATA HDD FRU
- 64 GB SSD HDD
626 KB ]
VXA Series Content Engines require purchase of both the hardware (below) and the desired Junos Content Encore software configuration. Please refer to the Junos Content Encore page for software ordering information.
| Hardware Model Number | Description |
|---|---|
| VXA1002-JMF | 2Gbps Max License, 2TB SATA, 1U VXA Appliance |
VXA Series Media Flow Engine Field Replaceable Units (FRUs)
| Part Number | Description |
|---|---|
| SAS300HDD | VXA Series 300 GB SAS 10,000 rpm 3.4 ms |
| SATA500HD | VXA Series 500 GB SATA 7,000 rpm 8.5 ms |
| SSD64GHDD | VXA Series 64 GB SSD SLC SATA |
| UNIV-500G-25-SAS-HDD | 500 GB SAS 10,000 rpm 3.4 ms |
| 1GEIOC | VXA Series 4 x 1GbE I/O Card (IOC) |
| 10GEIO | VXA Series 2 x 10GbE IOC |
