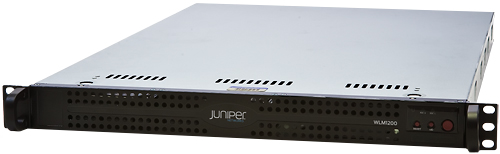

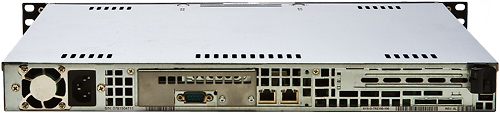

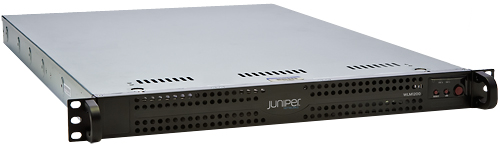

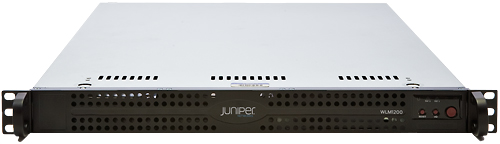

WLM1200 Management Appliance

The WLM1200 Management Appliance is a scalable, rack-mountable management platform for wireless LANs. When configured with the Juniper RingMaster Software, it provides full-lifecycle enterprise wireless LAN management, including planning, configuring, deploying, monitoring and optimising WLANs. It can support 250 to 5,000 indoor or outdoor access points, and is an enterprise-class, hardened device with fully redundant dual RAID storage.

When the WLM1200 Management Appliance is configured as a Location Appliance, it is a fast, reliable real-time location services platform for tracking devices on wireless LANs. It enables mobile enterprise applications like asset tracking and management, location-based security, and content delivery.

The WLM1200 provides a foundation for advanced RTLS (Real Time Location Services) over WLANs, enabling enterprises to implement perimeter security, improve asset utilisation, and augment identity-based security policies.

Features:

• Server-side RSSI (Received Strength Signal Indicator) pattern matching techniques for device tracking speed and precision
• Average seek time of 30 seconds
• Simultaneous tracking of 4,000 devices
• Visual dashboard that shows the real-time location of all 802.11 devices, asset tags, and access points plus the associations between devices and access points
• Accurately defines physical boundaries, such as inside vs. outside
• SOAP and XML application programming interfaces (APIs) to add location context to existing applications

The WLM1200's server-side RSSI location tracking provides the most accurate and precise real-time location tracking in the industry. Because no additional client software is required, the WLM1200 can track any 802.11 devices.

WLM1200 Performance:

• 99% accuracy at 10 meters
• 97% accuracy at 5 meters
• 95% accuracy at 3 meters
• 30 Sec average seek time
• 10 Sec minimum seek time
• Tracks up to 4,000 devices simultaneously
