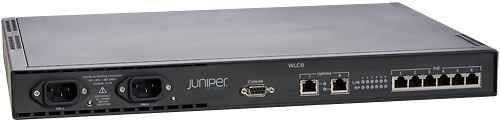

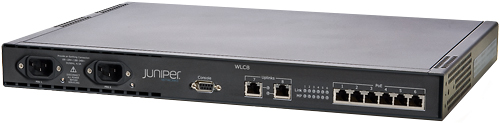

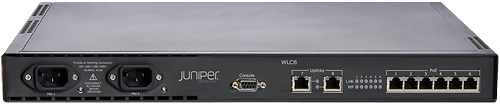

WLC8 Wireless LAN Controller
The WLC8 controller supports up to 12 access points and is suitable for branch office, small business or small school.
The WLC8 Wireless LAN Controller enables seamless and secure deployment of enterprise wireless LAN infrastructure over L2/L3 networks without disruption. It is 802.11n-ready and provides intelligent switching that combines centralized and distributed data forwarding. The WLC8 Wireless LAN Controller supports up to 12 access points and is designed for branch office and distributed wiring closet installations.
The WLC8 Wireless LAN Controller supports demanding wireless applications indoors and outdoors, including voice over wireless LAN infrastructure, for thousands of users. The WLC8 Wireless LAN Controller offloads policy enforcement and data forwarding to access points for optimized traffic flow, reduced latency, and scalability.
Features:
- Eight 10/100 fast Ethernet ports for unshielded twisted-pair (UTP) environments, 6 with Power-over-Ethernet (PoE)
- Combines L2 Ethernet switching, stateful per-user and per-service firewalls, wireless intrusion protection, 802.1Q trunking and per-VLAN spanning tree (PVST+)
- Complete wired to wireless quality of service (QoS)
- Optional redundant power supply
Clusters of WLC8 Wireless LAN Controllers form a mobility domain, which provides seamless roaming, intrusion protection, and RF management over large, single-site wireless LAN infrastructure deployments. A network domain interconnects mobility domains to support multiple sites and span wide geographic regions with secure, seamless mobility applications and smart mobile services.
Branch Office
12
N/A
2 x 10/100BASE-T, 6 x 10/100 POE
WLC8: Optional; WLC8R: Standard
Etherchannel, 802.3ad, PVST + N:1 / N:N WLA to WLC Failover
- 17.4 x 10.1 x 1.7 in (44.2 x 25.7 x 4.4 cm)
- One PSU 8.5 lbs (3.8 kg); Two PSU 9.5 lbs (4.3 kg)
- Operating: 0 to +50° C
- Storage: -20 to +70° C
10% - 90%
100-240 VAC. 50-60Hz Auto Sensing
4.0 AMP at 115 VAC, 2.0 AMP at 230 VAC
WLC Series Wireless LAN Controllers (WLC2800, WLC880, WLC800, WLC200, WLC8, WLC2)
838 KB ]
|
| Part Number | Description |
|---|---|
| WLC8 | Wireless LAN controller with 8 x 10/100BASE-T ports (6 PoE), single integrated PSU and support for 12 MPs. |
| WLC8R | Wireless LAN controller with 8 x 10/100BASE-T ports (6 PoE), dual integrated PSU and support for 12 MPs. |
| Advanced Feature Licenses | |
| WLC8-VO-RTU | Voice Module license for WLC8. Requires software Version 7.1 or later. |
| WLC8-HA-RTU | High Availability Module license for WLC8. Requires software Version 7.1 or later. |
| Access Point Feature Licenses | |
| WLC-MESH-U4 | Mesh Module license for 4 APs. Requires software Version 7.1 or later. |
| WLC-MESH-U12 | Mesh Module license for 12 APs. Requires software Version 7.1 or later. |
| WLC-SPECTRUM-U1 | Spectrum Analysis Module License for 1 AP. Requires software version 7.5 or later. |
| WLC-SPECTRUM-U4 | Spectrum Analysis Module License for 4 APs. Requires software version 7.5 or later. |
