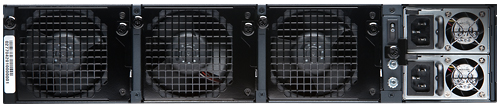

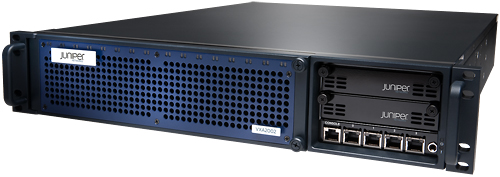

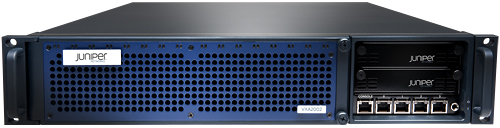

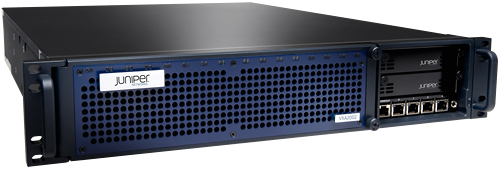

VXA2002
A NEBS-compliant, rack-mountable appliance that hosts Media Flow Controller and delivers 2 Gbps performance with 2 TB of expandable cache.
Maximum throughput
2 Gbps**
2 Gbps**
Network Interfaces (1GbE/10GbE)
4x1Gbps (fixed)
2 additional IOC slots
4x1Gbps (fixed)
2 additional IOC slots
- 4x1Gbps
- 2x10Gbps
RAM
36 GB
36 GB
Storage
2 TB**
2 TB**
Maximum sessions
500,000*
500,000*
Rack mountable
2 U
2 U
Dimensions
(W x H x D) 17.72 x 3.5 x 24.13 in
(45 x 8.8 x 61.3 cm)
(W x H x D) 17.72 x 3.5 x 24.13 in
(45 x 8.8 x 61.3 cm)
Add-on storage
SAS/SATA/SSD
SAS/SATA/SSD
Processor
Dual Quad Core
Dual Quad Core
Power
1 + 1 redundant DC (default); AC option
1 + 1 redundant DC (default); AC option
* Actual performance may vary based on factors such as deployment scenarios, object mix, and cache hit ratio.
** Base configuration. VXA2002 throughput and storage can be expanded with additional licenses and drives.
Hard Drive Field Replaceable Units (FRU)
- 300 GB SAS HDD FRU
- 500 GB SAS HDD FRU
- 500 GB SATA HDD FRU
- 64 GB SSD HDD
Network Interface I/O Cards (IOCs)
- 2 x 10GbE IOC
- 4 x 1GbE IOC
626 KB ]
VXA Series Media Flow Engines require purchase of both the hardware (below) and the desired Media Flow Controller software configuration. Please refer to the Media Flow Controller page for software ordering information.
| Hardware Model Number | description |
|---|---|
| VXA2002-JMF | 4Gbps Max License, 2TB SAS, 2U VXA NEBS Appliance |
VXA Series Media Flow Engine Field Replaceable Units (FRUs)
| Part Number | description |
|---|---|
| SAS300HDD | VXA Series 300 GB SAS 10,000 rpm 3.4 ms |
| SATA500HD | VXA Series 500 GB SATA 7,000 rpm 8.5 ms |
| SSD64GHDD | VXA Series 64 GB SSD SLC SATA |
| UNIV-500G-25-SAS-HDD | 500 GB SAS 10,000 rpm 3.4 ms |
| 1GEIOC | VXA Series 4 x 1GbE I/O Card (IOC) |
| 10GEIO | VXA Series 2 x 10GbE IOC |
| UNIV-PS-560W-AC | VXA2000 AC Power Supply |
