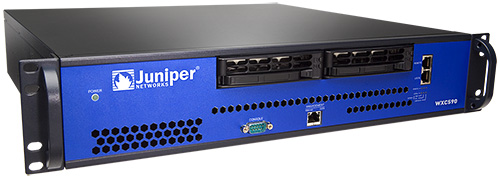

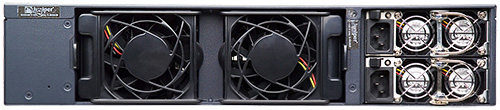

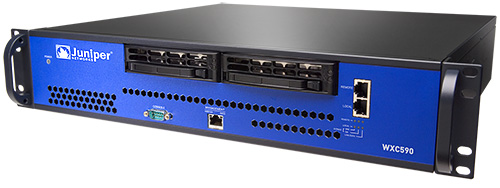

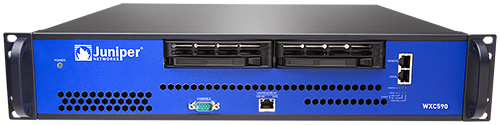

WXC590 Application Acceleration Platform
The WXC590 features redundant, field-serviceable 250 GB hard drives (for a total of 500 GB of storage), two copper 10/100/1000 Ethernet ports, and supports total reduction throughput speeds ranging from 2 Mbps to 45 Mbps**.
Performance
- Total reduction throughput speed: 2 Mbps to 45 Mbps
- IPsec throughput: 44 Mbps
- Tunnels supported: Up to 140 with all features enabled
- Disk capacity: 500 GB (redundant 250 GB drives)
Connections
Network interfaces: Two copper 10/100/1000 Ethernet ports
Network interfaces: Two copper 10/100/1000 Ethernet ports
Power requirement
Dual 100-240 VAC, 50-60 Hz, 300 Watts avg or 1025 BTU/hr
Dual 100-240 VAC, 50-60 Hz, 300 Watts avg or 1025 BTU/hr
Dimensions and Weight
- (W x H x D): 17.1 x 3.4 x 16.7 in (43.4 x 8.6 x 42.4 cm) 2 rack units
- Weight: 25 lb (11.3 kg)
Operating Environment
- Temperature: 41° to 104° F (5° to 40° C)
- Humidity: 10% to 85%, noncondensing at 95° F (35° C)
- Maximum altitude: 10,000 ft (3,048 m)
Nonoperating Environment
- Temperature: -40° to 158° F (-40° to 70° C)
- Humidity: 5% to 95%, noncondensing at 95° F (35° C)
- Maximum altitude: 40,000 ft (12,192 m)
Regulations
- Emissions: FCC Class A, EN 55022 Class A, EN 55024 Immunity, EN 61000-3-2, VCCI Class A
- Safety: CAN/CSA-C22.2 No. 60950-1-03 - UL 60950-1 and EN 60950-1
- Acoustic noise: Maximum noise level is less than 70 dB
543 KB ]
The table below reflects base models only. Bandwidth upgrades and options such as redundant hard drives, power supplies, and fans (WXC3400 and WXC590 only) are also available. Please contact your Juniper Networks representative or reseller for details.
|
| Model Number | Description |
|---|---|
| WXC590 | WXC590, Dual Hard Drives, Redundant AC Power, incl. RTU SW License to 2 Mbps |
