EX8200
The EX8200 line of switches offers flexible, modular platforms that deliver the port densities, scalability, and high availability required for today's demanding data center and campus core environments
Watch the EX8200 Demo
Form Factor
- EX8208: Eight-slot modular chassis

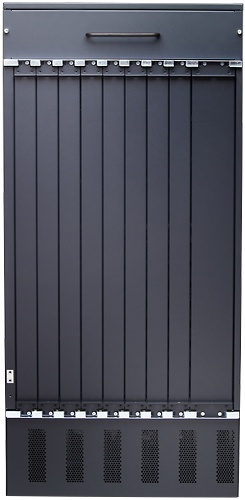

- EX8216: 16-slot modular chassis
Dimensions
- EX8208: 17.25 x 24.25 x 21 in (43.82 x 61.6 x 53 cm); 14 rack units
- EX8216: 17.3 x 36.5 x 26.5 in (43.9 x 92.7 x 67.4 cm); 21 rack units
Backplane Speed
- 320 Gbps (full duplex) per line card
- 3.1 Tbps (EX8208) or 6.2 Tbps (EX8216) per chassis
Data Rate
- EX8200-48T: 96 Gbps
- EX8200-48F: 96 Gbps
- EX8200-8XS: 160 Gbps
Throughput
- 120 Mpps per line card (wire speed)
- 960 Mpps (EX8208) or 1.92 Bpps (EX8216) per system
10/100/1000BASE-T Port Densities
- 48 per EX8200-48T line card
- 384 (EX8208) or 768 (EX8216) per chassis
100BASE-FX / 1000BASE-X (SFP) Port Densities
- 48 per EX8200-48F line card
- 384 (EX8208) or 768 (EX8216) per chassis
10GBASE-X Port Densities
- 8 per EX8200-8XS line card
- 64 (EX8208) or 128 (EX8216) per chassis
Resiliency
6 power supply bays for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and Switch Fabrics; GRES
6 power supply bays for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and Switch Fabrics; GRES
Power Options
- AC: 1200W and 2000W autosensing; 100-120V / 200-240V (up to 6000W or 10,000W per chassis)
- AC: 3000W 200-240V (up to 15,000W per chassis)
Operating System
JUNOS
JUNOS
QoS Queues / Port
8
8
MAC Addresses
160,000
160,000
Jumbo Frames
9216 Bytes
9216 Bytes
IPv4 Unicast / Multicast Routes
512,000 / 128,000
512,000 / 128,000
Number of VLANs
4,096
4,096
ARP Entries
100,000
100,000
Warranty
Standard one-year warranty
Standard one-year warranty
Download
2.60 MB ]
| Part Number | Description |
|---|---|
| EX8208 System | |
| EX8208-BASE-AC | Base EX8208 system configuration: 8-slot chassis with passive backplane and 1x fan tray, 1x routing engine with switch fabric, 1x switch fabric module, 2x 2000 W AC PSUs with power cords, and all necessary blank panels |
| EX8208-REDUND-AC | Redundant EX8208 system bundle: 8-slot chassis with passive backplane and 1x fan tray, 2x routing engine with switch fabric, 1x switch fabric module, 6x 2000 W AC PSUs with power cords, and all necessary blank panels |
| EX8208-SRE320 | Switch and Routing Engine for EX8208, redundant |
| EX8208-SF320-S | Switch Fabric module for EX8208, spare |
| EX8208-CHAS-S | EX8208 chassis with backplane, spare |
| EX8208-FAN-S | EX8208 fan tray, spare |
| EX8208-PKG-S | EX8208 shipping container, spare |
| EX8216 System | |
| EX8216-BASE-AC | Base EX8216 system configuration: 16-slot chassis with passive midplane and 2x fan tray, 1x routing engine, 8x switch fabric modules, 2x 3000 W AC PSUs with power cords, and all necessary blank panels |
| EX8216-REDUND-AC | Redundant EX8216 system configuration: 16-slot chassis with passive midplane and 2x fan tray, 2x routing engines, 8x switch fabric modules, 6x 3000 W AC PSUs with power cords, and all necessary blank panels |
| EX8216-REDUND-AC2 | Redundant EX8216 2kW system configuration: 16-slot chassis with passive midplane and 2x fan tray, 2x routing engines, 8x switch fabric modules, 6x 2000 W AC PSUs with power cords, and all necessary blank panels |
| EX8216-RE320 | Routing Engine for EX8216, redundant |
| EX8216-SF320-S | Switch Fabric module for EX8216, spare |
| EX8216-CHAS-S | EX8216 chassis with midplane, spare |
| EX8216-FAN-S | EX8216 fan tray, spare |
| EX8216-PKG-S | EX8216 shipping container, spare |
| EX8200 Power Supplies | |
| EX8200-PWR-AC3K | AC Power Supply, 3000 W at 220 V, redundant (AC power cords sold separately) |
| EX8200-PWR-AC2K | AC power supply, 2000 W at 220 V (1200 W at 110 V), redundant (AC power cords sold separately) |
| EX8200 Line Cards | |
| EX8200-48T | 48-port 10/100/1000BASE-T RJ-45 line card |
| EX8200-48F | 48-port 100FX/1000BASEXSFP line card; requires SFP optics sold separately |
| EX8200-8XS | 8-port 10 GbE SFP+ line card; requires SFP+ optics sold separately |
| Software | |
| EX8208-AFL | EX8208 Advanced Feature License (BGP, IS-IS, MPLS, IPv6) |
| EX8216-AFL | EX8216 Advanced Feature License (BGP, IS-IS, MPLS, IPv6) |
