NetScreen-5200 - 방화벽 VPN 어플라이언스 - Juniper Networks

NetScreen Series

NetScreen-5200

도움말

사양
모듈
참고 자료
관련 정보
주문

Number of Interfaces*
8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR)

Maximum Number of IP Addresses in Trusted Interfaces
Unrestricted

Maximum Throughput

10 Gbps FW
5 Gbps 3DES VPN

Maximum Number of Sessions
1,000,000

Maximum Number of VPN Tunnels
25,000

Maximum Number of Policies
40,000

Maximum Number of Virtual Systems
0 default, upgradeable to 500

Maximum Number of Virtual LANs
4094

Maximum Number of Security Zones
16 default, upgradeable to 1,016

Maximum Number of Virtual Routers
3 default, upgradeable to 503

Routing Protocols Supported
OSPF, BGP, RIPv1/v2

High-Availability Modes Supported

Active/Passive
Active/Active
Active/Active Full Mesh

IPS (Deep Inspection FW)
Yes

Integrated / Redirect Web Filtering
Yes

Notes
* Supports maximum of 1 Secure Port Module (8G2-G4 or 2XGE-G4) per system

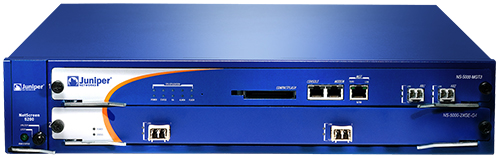

Juniper Networks NetScreen-5200

NS-5200	NS-5200 system, no SPM or MGT modules, includes fan tray, dual AC power supply, 19" rack mount, 0 VSYS
NS-5200-DC	NS-5200 system, no SPM or MGT modules, includes fan tray, dual AC power supply, 19" rack mount, 0 VSYS
Note: Add Management and SPM Modules to build complete systems

Juniper Networks NetScreen Series — Components needed to build complete systems

NS-5000-MGT2	Management Module 2
NS-5000-2XGE	2 x 10GigE Secure Port Module (SPM) - does NOT include transceivers
NS-5000-8G2	8 x GigE Secure Port Module 2 (SPM) - includes 8 x transceivers (SX)
NS-5000-8G2-TX	8 x GigE Secure Port Module 2 TX (SPM) - includes 8 x Gig copper transceivers
NS-5000-MGT3*	Management Module 3
NS-5000-2XGE-G4*	2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers
NS-5000-8G2-G4*	8 x GigE Secure Port Module (SPM) - includes 8 x transceivers (SX)
NS-5000-8G2-G4-TX*	8 x GigE Secure Port Module (SPM) - includes 8 x Gig copper transceivers
* The NS-5000-MGT3, NS-5000-2XGE-G4, NS-5000-8G2-G4, and NS-5000-8G2-G4-TX modules require ScreenOS version 6.1 or higher and cannot be intermixed with prior generation management or SPM modules. Customers who want to deploy NS-5000 series appliances with the latest Management Module must also deploy the latest G4 SPM modules.

유형 선택

Datasheets
Brochures
Solution Briefs
White Papers

NetScreen Series Security Systems

328 KB (한글) ]

Security Product Comparison Chart

154 KB ]

Security Services Gateways

711 KB ]

Unified Threat Management—All-in-One Security for Branch and Small to Medium Offices

239 KB ]

Implementing PCI — A Guide for Network Security Engineers

658 KB ]

Juniper Networks NetScreen-5200 System

NS-5200	NS-5200 system, no SPM or MGT modules, includes fan tray, dual AC power supply, 19" rack mount, 0 VSYS
NS-5200-DC	NS-5200 system, no SPM or MGT modules, includes fan tray, dual AC power supply, 19" rack mount, 0 VSYS
Note: Add Management and SPM Modules to build complete systems

Juniper Networks NetScreen Series — Components needed to build complete systems

NS-5000-MGT2	Management Module 2
NS-5000-2XGE	2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers
NS-5000-8G2	8 x GigE Secure Port Module 2 (SPM) — includes 8 x transceivers (SX)
NS-5000-8G2-TX	8 x GigE Secure Port Module 2 TX (SPM) — includes 8 x Gig copper transceivers
NS-5000-MGT3*	Management Module 3
NS-5000-2XGE-G4*	2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers
NS-5000-8G2-G4*	8 x GigE Secure Port Module (SPM) — includes 8 x transceivers (SX)
NS-5000-8G2-G4-TX*	8 x GigE Secure Port Module (SPM) — includes 8 x Gig copper transceivers
