Number of Interfaces
8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR)
8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR)
Maximum Number of IP Addresses in Trusted Interfaces
Unrestricted
Unrestricted
Maximum Throughput
- 30 Gbps Firewall
- 15 Gbps 3DES VPN
Maximum Number of Sessions
2,000,000
2,000,000
Maximum Number of VPN Tunnels
25,000
25,000
Maximum Number of Policies
40,000
40,000
Maximum Number of Virtual Systems
0 default, upgradeable to 500
0 default, upgradeable to 500
Maximum Number of Virtual LANs
4,093
4,093
Maximum Number of Security Zones
23 default, upgradeable to 1,023
23 default, upgradeable to 1,023
Maximum Number of Virtual Routers
3 default, upgradeable to 503
3 default, upgradeable to 503
Routing Protocols Supported
OSPF, BGP, RIPv1/v2
OSPF, BGP, RIPv1/v2
High-Availability Modes Supported
- Active/Passive
- Active/Active
- Active/Active Full Mesh
IPS (Deep Inspection Firewall)
Yes
Yes
Integrated / Redirect Web Filtering
Yes
Yes
Notes
* Requires minimally 2 Secure Port Modules (8G2-G4 or 2XGE-G4)
* Requires minimally 2 Secure Port Modules (8G2-G4 or 2XGE-G4)

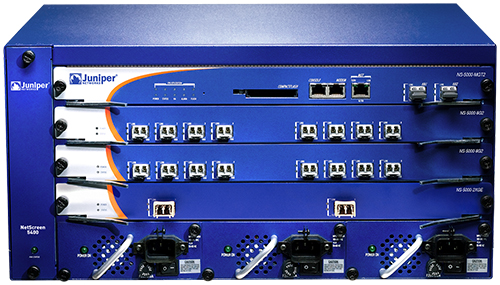

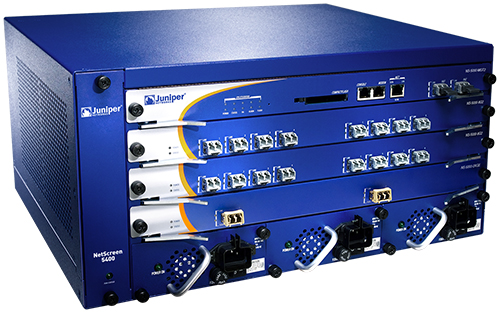

Juniper Networks NetScreen-5400
| Model Number | Description |
|---|---|
| NS-5400 | NS-5400 system, no SPM or MGT modules, includes fan tray, 3 x AC power supply, 19" rack mount, 0 VSYS |
| NS-5400-DC | NS-5400 system, no SPM or MGT modules, includes fan tray, 3 x DC power supply, 19" rack mount, 0 VSYS |
| Note: Add Management and SPM Modules to build complete systems | |
Juniper Networks NetScreen Series — Components needed to build complete systems
| Model Number | Description |
|---|---|
| NS-5000-MGT2 | Management Module 2 |
| NS-5000-2XGE | 2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers |
| NS-5000-8G2 | 8 x GigE Secure Port Module 2 (SPM) — includes 8 x transceivers (SX) |
| NS-5000-8G2-TX2 | 8 x GigE Secure Port Module 2 TX (SPM) — includes 8 x Gig copper transceivers |
| NS-5000-MGT31 | Management Module 3 |
| NS-5000-2XGE-G41 | 2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers |
| NS-5000-8G2-G41 | 8 x GigE Secure Port Module (SPM) - includes 8 x transceivers (SX) |
| NS-5000-8G2-G4-TX1, 2 | 8 x GigE Secure Port Module (SPM) — includes 8 x Gig copper transceivers |
|
1 The NS-5000-MGT3, NS-5000-2XGE-G4, NS-5000-8G2-G4, and NS-5000-8G2-G4-TX modules require ScreenOS version 6.1 or higher and cannot be intermixed with prior generation management or SPM modules. Customers who want to deploy NS-5000 series appliances with the latest Management Module must also deploy the latest G4 SPM modules. 2 Only rates of 1 Gbps/Gigabit Ethernet supported (10/100 Mbps not supported). |
|
Number One Shopping Mall in Korea Secures Service with Juniper Networks 10 Gigabit-Class Firewalls
Download
[
150 KB ]
150 KB ]
|
| Model Number | Description |
|---|---|
| NetScreen-5400 System | |
| NS-5400 | NS-5400 system, no SPM or MGT modules, includes fan tray, 3 x AC power supply, 19" rack mount, 0 VSYS |
| NS-5400-DC | NS-5400 system, no SPM or MGT modules, includes fan tray, 3 x DC power supply, 19" rack mount, 0 VSYS |
| NS-5400-CHA | NetScreen-5400 chassis |
| NS-5400-FAN | NetScreen-5400 fan assembly |
| Note: Add Management and SPM Modules to build complete systems | |
| NetScreen-5000 Series — Components needed to build complete system | |
| NS-5000-MGT2 | Management Module 2 |
| NS-5000-2XGE | 2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers |
| NS-5000-8G2 | 8 x GigE Secure Port Module 2 (SPM) — includes 8 x transceivers (SX) |
| NS-5000-8G2-TX2 | 8 x GigE Secure Port Module 2 TX (SPM) — includes 8 x Gig copper transceivers |
| NS-5000-MGT31 | Management Module 3 |
| NS-5000-2XGE-G41 | 2 x 10GigE Secure Port Module (SPM) — does NOT include transceivers |
| NS-5000-8G2-G41 | 8 x GigE Secure Port Module (SPM) — includes 8 x transceivers (SX) |
| NS-5000-8G2-G4-TX1, 2 | 8 x GigE Secure Port Module (SPM) — includes 8 x Gig copper transceivers |
|
1 The NS-5000-MGT3, NS-5000-2XGE-G4, NS-5000-8G2-G4, and NS-5000-8G2-G4-TX modules require ScreenOS version 6.1 or higher and CANNOT be intermixed with prior generation management or SPM modules. Customer who wish to deploy NetScreen Series systems with the latest Management Module 3 must also deploy the latest G4 SPM modules. 2 Only rates of 1 Gbps/Gigabit Ethernet supported (10/100 Mbps not supported). |
|
| NetScreen-5000 Series — Virtual System Upgrades | |
| NS-5000-VSYS-5 | VSYS upgrade 0 to 5 |
| NS-5000-VSYS-25 | VSYS upgrade 5 to 25 |
| NS-5000-VSYS-50 | VSYS upgrade 25 to 50 |
| NS-5000-VSYS-100 | VSYS upgrade 50 to 100 |
| NS-5000-VSYS-250 | VSYS upgrade 100 to 250 |
| NS-5000-VSYS-500 | VSYS upgrade 250 to 500 |
| NS-5000-VSYS | VSYS upgrade 0 to 500 |
| NetScreen-5000 Series — Accessories | |
| NS-SYS-GBIC-MSX | SX transceiver (mini-GBIC) |
| NS-SYS-GBIC-MLX | LX transceiver (mini-GBIC) |
| NS-SYS-GBIC-MXSR | XFP 10GigE transceiver Short Range (SR) (300 m) |
| NS-SYS-GBIC-MXLR | XFP 10GigE transceiver Long Range (LR) (10 km) |
