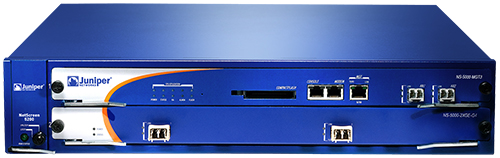

NetScreen 5200

Delivers up to 10 Gbps of firewall throughput

The NetScreen 5200 integrates firewall, VPN, traffic management, DoS and DDoS protection, while delivering up to 10 Gbps of firewall throughput.

Product Media Viewer

Overview

NetScreen 5200 is a comprehensive security system suited for large enterprise network backbones including departmental or campus segmentation, enterprise data centers, and other high-density server environments and carrier-based managed services or core infrastructures.

Its two-slot chassis provides excellent flexibility and scalability, while providing high levels of security that integrate firewall security, VPN security, traffic management functionality, denial of service (DoS), and distributed denial of service (DDoS) protection.

Built around Juniper’s third-generation security ASIC and distributed system architecture, NetScreen 5200 delivers up to 10 Gbps of firewall throughput in a modular design for scale and flexibility in large enterprise and service provider networks.

Features

  • Modular Design supports scale and flexibility in large enterprise and service provider networks.
  • High Availability is built in for sub-second failover between interfaces or devices.
  • Full Mesh Configurations provide redundant physical paths in the network for maximum resiliency and uptime.
  • Virtual Systems allow partitioning into unique security domains.
  • Interface Flexibility accommodates varying network connectivity and future growth requirements.
  • Virtual Routers provide alternate, concealed routes to final destinations.
  • Security Zones can be customized to increase interface density without additional hardware.
  • Transparent Mode offers firewall, VPN, and DoS protections with minimal network changes.
  • Centralized Management is provided through a graphical Web interface, CLI, or Juniper Networks Network and Security Manager.

Specs

Number of Interfaces*8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR)
Maximum Number of IP Addresses in Trusted InterfacesUnrestricted
Maximum Throughput10 Gbps Firewall
5 Gbps 3DES VPN
Maximum Number of Sessions1,000,000
Maximum Number of VPN Tunnels25,000
Maximum Number of Policies40,000
Maximum Number of Virtual Systems0 default, upgradeable to 500
View full spec sheet

Product Specs

NetScreen 5200
Number of Interfaces*8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR)
Maximum Number of IP Addresses in Trusted InterfacesUnrestricted
Maximum Throughput10 Gbps Firewall
5 Gbps 3DES VPN
Maximum Number of Sessions1,000,000
Maximum Number of VPN Tunnels25,000
Maximum Number of Policies40,000
Maximum Number of Virtual Systems0 default, upgradeable to 500
Maximum Number of Virtual LANs4,093
Maximum Number of Security Zones23 default, upgradeable to 1,023
Maximum Number of Virtual Routers3 default, upgradeable to 503
Routing Protocols SupportedOSPF, BGP, RIPv1/v2
High-Availability Modes SupportedActive/Passive
Active/Active
Active/Active Full Mesh
IPS (Deep Inspection Firewall)Yes
Integrated / Redirect Web FilteringYes
Notes* Supports maximum of 1 Secure Port Module (8G2-G4 or 2XGE-G4) per system
